The DELIB driver library enables uniform addressing of all DEDITEC control technology products. For this purpose, we provide programmers with corresponding functions for the respective product groups, which enable uniform but also very simple addressing of the products.

Here you will find an overview of the DELIB and its additional programs:

A list of all DELIB commands can be found here:

We also offer a pure Ethernet version of the DELIB driver library. All other drivers, such as USB/SER, are not included.
This has the advantage that no installation of the driver library or configuration of the module is necessary.
This gives project customers the advantage that the Ethernet driver library can be integrated into their own setup, which means that the DELIB setup does not have to be carried out.

All products with an Ethernet interface are supported by this driver library and can be addressed via the IP address.

Here you can find the download:

The following example shows how the inputs of our modules can be accessed within a very short time using simple means.

Open the desired module

handle = DapiOpenModule(RO_ETH,0); // Open the module

Reading 16 digital inputs

data = DapiDIGet16(handle, 0); // Read the first 16 digital inputs

Close open module

DapiCloseModule(handle); // Close the module

The "DapiOpenModule" function is used to open a product. The two parameters passed determine which product is to be opened. The first parameter is the "Module ID". The parameter can simply be specified as "RO_USB1" using the integrated "DELIB.H". This tells the driver library that an RO module with USB bus is to be addressed.

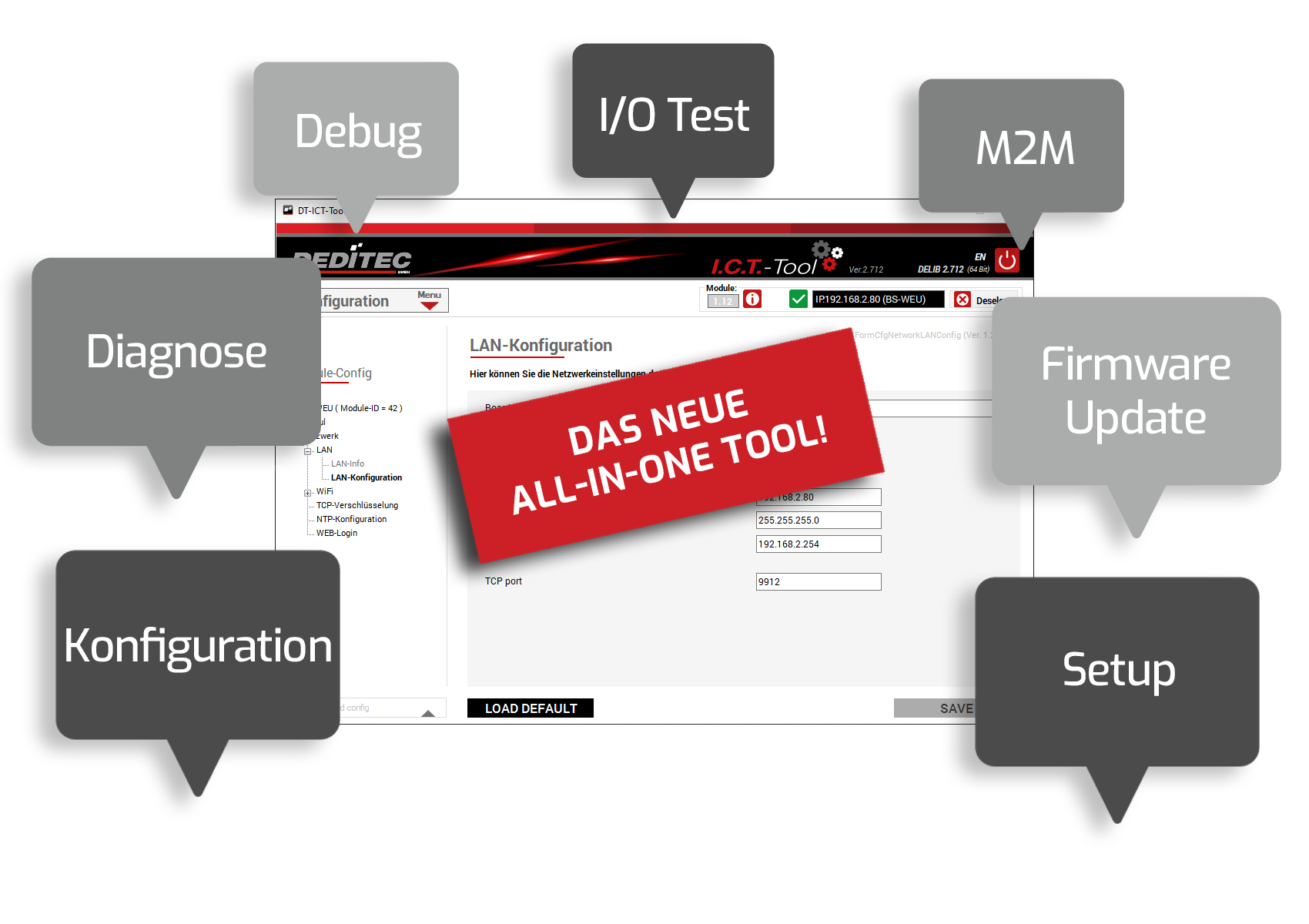

The second parameter determines the module number. If only one module is connected to the PC, simply enter "0". If several modules are connected, the corresponding module number must be specified. The module number can be changed using the ICT-Tool.
