RO series – low-profile, modularly configurable I/O modules for measurement and control tasks
The RO series is particularly suitable when different signal types need to be combined within a limited installation depth. In addition to digital inputs, relay, MOSFET, and PWM outputs, as well as analog I/Os, submodules are available for counters, incremental encoders, and PT100 temperature measurement.
- The RO series at a glance
- Which applications is the RO series suitable for?
- When is the RO series the right choice?
- Modular design of the RO series
- Which RO interface is right?
- Digital, analog, and specialized I/O modules
- How to configure your RO system
- Select RO modules by function
- Control and integrate the RO series
- Additional functions of the RO series
- The RO series in practice
- UC, NET, RO, or BS?
- Development, long-term availability, and support
- Accessories and additional components
- Frequently asked questions about the RO series
- Find the right RO configuration
The RO series at a glance
| Feature | Benefit |
|---|---|
| Particularly low-profile module design | For applications with limited installation depth. |
| Modular plug-in system | Configure the interface and suitable I/O submodules individually. |
| Digital and analog I/Os | Combine different signal types within a single configuration. |
| Specialized functions | Counters, incremental encoders, and PT100 temperature measurement. |
| USB, Ethernet, CAN, or serial | Select the communication interface to match the control and software environment. |
| DIN rail mounting | Integration into control cabinets and technical installations. |
| DELIB/API and open protocols | Integration with custom software and industrial communication systems. |
| ICT-Tool | Configuration, I/O testing, diagnostics, and firmware updates. |
Which applications is the RO series suitable for?
Machine and plant automation
Test benches and automated test systems
Compact control cabinets and special-purpose machinery
Counter and encoder evaluation
Temperature measurement
When is the RO series the right choice?
The RO series is particularly suitable when:
- Very low installation depth is a key selection criterion.
- Digital, analog, and specialized I/O functions need to be combined.
- USB, Ethernet, CAN, or a serial communication interface is required.
- Specialized modules for counters, incremental encoders, or PT100 temperature measurement are required.
- The I/Os need to be integrated into custom PC or automation software.
When is the RO series less suitable?
For small, predefined stand-alone tasks, a module from the UC series may be sufficient. If a centrally structured architecture designed for later expansion with larger I/O systems is planned, the NET series should be considered. For applications requiring many I/Os in a closed aluminum enclosure, the BS series may be a suitable alternative.

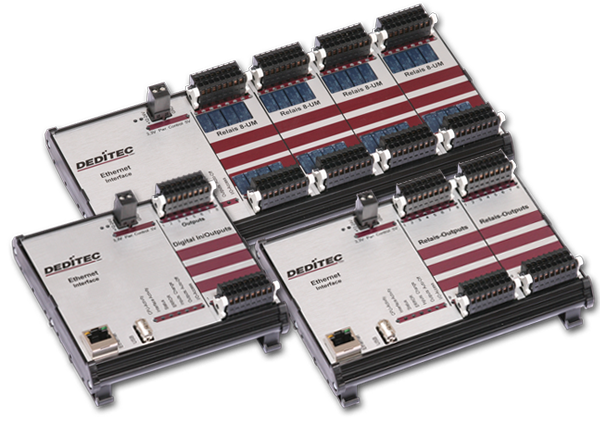

Modular design of the RO series – individually combine the interface and I/O submodules
A maximum of ten I/O submodules can be connected per RO interface. The available submodules can be combined independently of the selected communication interface. The number of inputs and outputs depends on the type and number of submodules used.
Thanks to the particularly low-profile aluminum-plastic enclosure and DIN rail mounting, the configuration can be integrated in a space-saving manner. The overall length varies depending on the type and number of submodules used.
Subsequent expansion of the RO series
When assembling the system, the specified submodule order must be observed: Interface → digital outputs (DO) → digital inputs (DI) → counters/incremental encoders (CNT/IGR) → analog inputs (A/D) → analog outputs (D/A).
USB, Ethernet, CAN, or RS-232/RS-485 – which RO interface is right?
| Interface | Communication | Particularly suitable when … |
|---|---|---|
| RO-USB | USB | the module is to be connected directly to a local control PC. |
| RO-ETH_LC | Ethernet / TCP/IP; Modbus TCP | I/O data needs to be accessible via a network. |
| RO-CAN | RAW CAN / SAE J1939 | a CAN-based control or test application is used. |
| RO-SER | RS-232 and RS-485; depending on revision | an existing serial communication interface is to be used. |
RO-USB – direct connection to the control PC
RO-ETH_LC – Ethernet and Modbus TCP
RO-CAN – RAW CAN and SAE J1939
RO-SER – RS-232 and RS-485
Which RO interface should I choose?
Digital, analog, and specialized I/O modules of the RO series
| Category | Module types | Function |
|---|---|---|
| Digital inputs | RO-OPT16 | Optocoupler-isolated inputs for state detection. |
| Relay outputs | RO-REL16 / RO-REL8_UM | Relay-based switching of electrical loads. |
| MOSFET / PWM | RO-MOS16 / RO-PWM | Electronic switching and pulse-width-modulated control. |
| Combined digital I/Os | RO-OPT8-REL8 | Digital input signals and relay outputs. |
| Analog inputs | RO-AD16_ISO / RO-AD16-DA4 | Acquire voltage and optional current signals. |
| Analog outputs | RO-DA2_ISO / RO-DA4/8 / RO-AD16-DA4 | Output analog setpoint and control signals. |
| Counters | RO-CNT8 | Count pulses and process counter values. |
| Incremental encoders | RO-CNT/IGR | Evaluate encoder and position signals. |
| Temperature | RO-PT100-4 | Four PT100 measurement channels. |
Digital inputs and switching outputs
Analog inputs and outputs
Counters and incremental encoders
PT100 temperature measurement
Which I/O modules are available for the DEDITEC RO series?
Even if a specific combination of interface and I/O submodules is not offered as a preconfigured product variant in the web shop, the required submodules can be ordered individually and assembled into a suitable RO configuration.
How many I/O channels does the RO series support?
The maximum number of channels in an RO configuration depends on the I/O submodules used. Up to ten submodules can be connected per interface. For example, configurations using digital input or output modules can provide up to 160 channels. Other module types and combined I/O configurations provide different channel counts depending on their respective features.
| I/O function | Maximum number of channels |
|---|---|
| Digital inputs | 160 |
| Digital outputs | 160 |
| Analog inputs | 160 |
| Analog outputs | 80 |
| PT100 | 40 |
| Incremental encoders | 20 |
| Combined digital inputs and outputs | 80 inputs / 80 outputs |
| ICT-Tool | Configuration, I/O testing, diagnostics, and firmware updates. |
How to configure your RO system
1. Select the communication interface
2. Determine the required I/O functions
3. Check the channel count and electrical requirements
4. Plan submodules and installation space
Combine suitable submodules and take into account the variable overall length of the configuration on the DIN rail. A maximum of ten I/O submodules can be connected per RO interface. When assembling the system, the specified order of the submodules as well as the mechanical requirements must be observed.
Technical note:
Interface → DO → DI → CNT/IGR → A/D → D/A
5. Define the software and protocol integration
| Key question | Criterion |
|---|---|
| How does the system communicate? | USB, Ethernet, CAN, or serial |
| Which signals are processed? | Digital, analog, counters, encoders, stepper, PT100 |
| How many channels are required? | Input/output channels per submodule |
| Which electrical requirements apply? | Voltage, current, switching load, galvanic isolation |
| How much installation space is available? | Installation depth, overall length, and DIN rail |
| Which control method is intended? | DELIB/API, open protocols, Modbus TCP |
Select RO modules by function
Interfaces
Digital inputs
Relay outputs
MOSFET
PWM
Digital inputs/outputs
Analog inputs
Analog outputs
CNT / IGR
Temperature
Control the RO series and integrate it into custom software
| Control method / Tool | Application | Practical benefit |
|---|---|---|
| DELIB / API | Custom PC applications | Unified access to I/O functions. |
| Open DEDITEC protocols | Direct integration | Communication without DELIB for suitable interfaces. |
| Modbus TCP | Ethernet automation | Register- and bit-based I/O access. |
| RAW CAN / J1939 | CAN systems | CAN-based I/O communication. |
| RS-232 / RS-485 | Serial systems | Integration into existing serial environments. |
| DELIB CLI | Scripts / Tests | Control via the command line. |
| ICT-Tool | Commissioning / Diagnostics | Configuration, I/O testing, and firmware updates. |
| Web interface | Suitable Ethernet interfaces | Configuration and supported I/O functions via a web browser. |
Custom software with DELIB and API
The DELIB driver library enables I/O access from custom applications. Supported programming languages and environments include C, C++, C#, Delphi, Visual Basic, VB.NET, VBA, Java, Python, and LabVIEW. Corresponding driver versions are available for Windows and Linux. All DELIB commands can be executed via Python.
RAW CAN and SAE J1939
RO-CAN supports CAN communication and the configuration of automatic TX/RX functions; SAE J1939 uses the corresponding 29-bit CAN addressing. CANopen functionality is not supported.
Web interface and app for RO-ETH_LC
The RO-ETH_LC interface provides a web interface for configuring and operating various I/O functions. It can be used to change network settings, set digital outputs, read digital inputs and input counters, write analog output values, and read analog input values. Channel names can also be edited. In addition, an app is available for operation via smartphone and tablet.
Open DEDITEC protocols
For Ethernet, CAN, and serial products, DEDITEC provides open communication protocols with documented register assignments. These enable project-specific control independently of DELIB.
Serial communication
RO-SER provides integration with corresponding RS-232 or RS-485 systems; the specific functionality depends on the hardware revision.
How can the RO series be integrated into custom software?
Custom applications can access RO modules via DELIB/API. Depending on the interface, open communication protocols are also available for Ethernet, CAN, or serial communication. Modbus TCP is additionally available for Ethernet. The ICT-Tool is used for commissioning and diagnostics.
Modbus TCP via Ethernet
I/O data can be read from and written to suitable Ethernet RO modules via Modbus TCP using registers and bits.
DELIB CLI and ICT-Tool
DELIB CLI enables command-line applications on Windows and Linux. The ICT-Tool can be used to add, configure, test, and diagnose modules, as well as update their firmware.
More than basic I/O – additional functions of the RO series
| Function | Benefit |
|---|---|
| Digital input filters | Suppress short unwanted pulses; filter time from 0 to 255 ms. |
| 16-bit input counters | Acquire digital events at suitable inputs. |
| State change detection | Detect signal changes between two read operations. |
| Timeout protection | Define output behavior in the event of a communication interruption. |
| M2M / CAN Auto TX/RX | Direct data transmission with appropriately equipped interfaces. |
| ICT-Tool diagnostics | Perform I/O, access time, Modbus, and signal tests. |
Digital input filters and state change detection
Input counters and pulse acquisition
Timeout protection for digital outputs
M2M communication and CAN Auto TX/RX
Diagnostics and testing
RO series in practice
Machine and plant automation
Test benches and test systems
Space-saving control cabinet installation
Pulse counting and position detection
PT100 temperature measurement
UC, NET, RO, or BS – which DEDITEC I/O series is right for your application?
| Requirement | More suitable series |
|---|---|
| Particularly low installation depth | RO series |
| Custom I/O combination in a low-profile design | RO series |
| Targeted combination of counters, encoders, or PT100 | RO series |
| Compact stand-alone I/O module for defined tasks | UC series |
| Modular I/O architecture with later expansion | NET series |
| Larger and more complex I/O systems | NET series |
| Large number of I/Os in a closed aluminum enclosure | BS series |
RO series – low-profile and combinable I/O functions
UC series – compact stand-alone I/O modules
NET series – modularly expandable remote I/O system
BS series – many I/Os in an aluminum enclosure
RO or NET – what is the main difference?
RO or UC – what is the difference?
Development, long-term availability, and technical support
| Area | Benefit |
|---|---|
| Modular product development | Targeted modification of individual assemblies when components change. |
| Long-term product availability | Supports long-term planning and future reordering. |
| Technical support | Support for hardware, software, and commissioning issues. |
| Documentation and sample code | DELIB/API, open protocols, ICT-Tool, and programming examples. |
| Development and manufacturing in Germany | Development and production of the RO series by DEDITEC in Germany. |
| Custom adaptations | Adaptation of software and firmware functions to specific project requirements. |
Modular development and long-term availability
Thanks to the modular architecture, individual assemblies can be revised when component availability changes without having to completely redesign the entire product.
Documentation and sample code
Hardware descriptions, API references, examples, and open protocols support integration into custom software solutions. The ICT-Tool simplifies setup and diagnostics.
Development and manufacturing in Germany
The DEDITEC RO series is developed and manufactured in Germany. This enables DEDITEC to combine hardware and software development with its own manufacturing and technical support.
Custom software and firmware adaptations
In addition to the standard functions, DEDITEC also offers custom software and firmware adaptations for the RO series. This makes it possible to accommodate specific requirements of industrial measurement, testing, and automation applications.
Technical support for selection and integration
DEDITEC provides support for both hardware and software. Users receive assistance with commissioning, interfaces, and communication.
10 years of long-term availability
DEDITEC offers ten years of long-term availability for the RO series. This supports long-term planning for measurement, control, and automation projects where replacement units or future reordering may be required over an extended period.
The modular product development approach supports this long-term strategy, as individual assemblies can be adapted in a targeted manner when component availability changes.
Accessories and additional components for the RO series
Power supply
Connectors and connection accessories
Accessories for subsequent expansion
Optional galvanic isolation
Frequently asked questions about the DEDITEC RO series
What is the DEDITEC RO series?
What are the advantages of the low-profile design?
Can different I/O modules be combined?
Which interfaces does the RO series support?
Does the RO series support Modbus TCP?
Which specialized I/O functions are available?
Can I integrate the RO series into custom software?
Which additional functions does the RO series provide?
What is the difference between the RO and NET series?
Which applications is the RO series suitable for?
Can the RO series be expanded later?
Find the rightRO configurationfor your application
Select RO modules
Support with selection
Not sure which RO configuration is right for you?
Helpful information for your inquiry:
- required interface, e.g. USB, Ethernet, CAN or RS232/RS485,
- number and type of required I/Os,
- voltage and/or current ranges,
- loads to be switched,
- software or programming language used,
- required communication protocol or special functions such as Event Control or
Modbus TCP.
