UC-CANopen module with 2 analog inputs

Price range: € 770,53 through € 849,66 Incl. 19% VAT plus shipping

SKU: UC-CANOPEN-AD2-16/18_ISO Categories: ,

Our promise to you

The UC-CANOPEN-AD2-ISO module has 2 analog inputs with either 16-bit or 18-bit resolution. It can be operated both as a stand-alone device and in a network of several CANopen modules. Due to the CANopen profiles according to CiA® specifications CiA 301, CiA 305 and CiA 401, this module is ideally suited for almost all areas of application in modern automation technology.

  • CANopen profiles according to CiA® specifications CiA 301, CiA 305, and CiA 401
  • Galvanic isolation of the CAN bus
  • Node ID and baud rate configurable via DIP switch or LSS
  • 2 A/D channels with 16-bit/18-bit resolution
  • Galvanic isolation: max. 1 kV
  • Voltage ranges: 0–5 V, 0–10 V, 0–20 V, 0–40 V, +5 V, +10 V, +20 V, +40 V
  • Current ranges: 0–20 mA, 4–20 mA, 0–24 mA

Analog inputs

Analog/digital converter modules are suitable for measuring and monitoring voltages and currents. Transducers, for example, convert physical variables such as pressure, temperature, humidity etc. into corresponding currents or voltages and can therefore be recorded and digitally processed with our A/D modules.

A/D filter

Electrical or electromagnetic interference in measurement signals is smoothed and optimized by the software A/D filter by averaging the measurements.

Icon Analog In

Plug connector

A screwless system from the manufacturer WAGO® Kontakttechnik is used as the connector. The 1-wire female connectors are 100 % protected against mismating and have an ejection and locking mechanism.

Icon Steckverbindung 12er

Easy installation thanks to DIN rail bus

Thanks to the practical NET bus connector, which is clipped into the DIN rail, individual modules of a system can be added or replaced very easily. This Plug'n Play principle makes commissioning easier for you and eliminates the need for tedious wiring.


LEDs

Each digital input and output has a separate LED that lights up when the signal status is active. The status of the operating voltage, communication with the interface, error events or the occurrence of a timeout can also be displayed.

Icon LED

Software and control for programmers

Our supplied DELIB driver library makes it easy to address the product via our API in almost all programming languages under Windows and Linux.

We offer support for the following programming languages:

  • C
  • C++
  • C#
  • VB
  • VBA
  • VB.Net
  • Java
Icon Software

General information

Power supply as a stand-alone device +7 V DC ... +24 V DC
Power supply as a combined device Externally via the DIN rail connector
LEDs general
  • Green = CANopen RUN -> Indicates the current CANopen status of the module (e.g. “preoperational” or “stopped”).
  • Red = CANopen ERR -> Indicates an error, e.g. faulty CAN-BUS wiring
  • Yellow = Power/Status -> Lights up when power supply = ok
  • U mode active / not active
  • I mode active / not active
  • Read/write access to the A/D converter
LEDs product-specific

UC-CANOPEN-AD2:

  • A/D channel active / not active



UC-CANOPEN-AD16:

  • Extended voltage range (U-E) active / not active
  • 16-bit mode active / not active
  • 18-bit mode active / not active
  • 20-bit mode active / not active

Bus connector (optional)
  • Bus connector for clipping into the top-hat rail
  • Plug and play connection of several DEDITEC CANopen modules
  • CAN-High, CAN-Low
  • +24 V, GND
DIN rail mounting 35 x 7,5 mm
Operating temperature +10 °C ... +50 °C

Interfaces

CANopen Interface

CANopen interface
  • CANopen (galvanically isolated up to 500 V)
  • CANopen profiles according to CiA® specification CiA 301, CiA 305 and CiA 401
  • CAN 2.0A or CAN 2.0B
NODE-ID Configurable via coding switch
Baud rates

Configurable via coding switch

  • 1 Mbit/s
  • 800 Kbit/s
  • 500 Kbit/s
  • 250 Kbit/s
  • 125 Kbit/s
  • 100 Kbit/s
  • 50 Kbit/s
  • 20 Kbit/s
  • 10 Kbit/s
  • Autobaud

Inputs/Outputs

Analog inputs

Inputs
  • 2 A/D channels single ended (16-bit version)
  • 2 A/D channels diff. ended (18-bit version)
  • Resolution: 16-bit or 18-bit per channel
  • Measuring ranges 16-bit version:
    0-5 V, 0-10 V, 0-20 V, 0-40 V, +-5 V, +-10 V, +-20 V, +-40 V
    0-20 mA, 4-20 mA, 0-24 mA
  • Measuring ranges 18-bit version:
    +-5 V, +-10 V
  • Input resistance: >500 kOhm
  • Input resistance: >500 kOhm
  • Zero Error Temperature Drift: +-1 ppm / °C
  • Full-Scale Error Temperature Drift: +-1 ppm / °C
  • Bipolar Full-Scale Error: Min: – 50 LSB / Max: +50 LSB
  • Unipolar Full-Scale Error: Min: – 70 LSB / Max: +70 LSB
  • Integral Linearity Error: Min: -1.5 LSB / Max: +1.5 LSB
Conversion rates
  • Conversion rate A/D converter: 4 µs
  • Conversion rate of the module (both A/D channels are converted)
    8665 conversions/second with A/D filter level switched off (filter level = 0)
    700 conversions/second with an A/D filter level of 10
Galvanic isolation Galvanic isolation from the power supply: max. 500V
A/D-filter
  • Electrical or electromagnetic interference in measurement signals is smoothed and optimized by the software-side A/D filter by averaging the measurements
  • Filter level 0 at module start (= filter deactivated)
  • Adjustable via DELIB commands

    Set: DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_AD, DAPI_SPECIAL_AD_FILTER_SET, ((filterlevel & 0xff) << 8) | (submodule_nr & 0xff) , 0)

    Read back: DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_AD, DAPI_SPECIAL_AD_FILTER_GET, (submodule_nr & 0xff) , 0)


Connectors

Plug connector 16-pin
  • Type: Wago contact technology 713-1108/037-000
  • Pluggable female connector with locking mechanism
  • 100 % protected against mismating
  • 1-wire connection for all conductor types up to 1.5 mm²
Plug connector 5-pin
  • Type: Phoenix Contact 1876343
  • Pluggable screw terminal
  • 100 % mismating protected
  • For all conductor types from 0.14 mm² to 1.5 mm²

Configuration of CANopen modules

The CANopen interface is configured via the CANopen bus of the module and via three rotary coding switches located on the front of the module.
The upper and middle rotary coding switches determine the node ID, the lower one the baud rate.

Icon Canopen

Rotary coding switch

In this example, the operating mode is CANopen, the bit rate is 250 kBit/s and the node ID is 0x24.

The upper rotary coding switch determines the high-order bits and the middle switch the low-order bits.
The lower rotary coding switch is used to set the baud rate, the following is a list of all settings:
Cos Konfiguration 615 464

Meaning of lower rotary switch:

Value Operating mode Description
0 CANopen Bitrate = 1000 kBit/s
1 CANopen Bitrate = 800 kBit/s
2 CANopen Bitrate = 500 kBit/s
3 CANopen Bitrate = 250 kBit/s
4 CANopen Bitrate = 125 kBit/s
5 CANopen Bitrate = 100 kBit/s
6 CANopen Bitrate = 50 kBit/s
7 CANopen Bitrate = 20 kBit/s
8 CANopen Bitrate = 10 kBit/s
9 CANopen Autobaud + LSS
A CANopen Autobaud
B CANopen Bootloader Bitrate = 250 kBit/s
C CANopen Bootloader Bitrate = 1000 kBit/s, Node ID = 0x7e
D CAN 2.0 A/B Use settings from EEPROM
E CAN 2.0 A/B Bitrate = 1000 kBit/s, CAN ID = 0x100
F CANopen Bitrate = 1000 kBit/s, CAN ID = 0x7e

Control of CANopen modules

The CANopen modules are controlled via a so-called object directory. Standardized communication objects such as PDOs and SDOs are used for this purpose.

Icon Canopen

EDS
Select the EDS file for your module to load all the registers required for the controller.

Canopen Explorer Eds

Read register
Under the "Device Profile Segment" tab, you will find all the registers for controlling the module.
In register 0x6200 it is possible to write or read the states of the relays.
In the example, the status of the first 8 relays is read.

Canopen Explorer Read

Write register
Under the "Device Profile Segment" tab, you will find all the registers for controlling the module.
In register 0x6200 it is possible to write or read the states of the relays.
In the example, the status of the first 8 relays is written.

Canopen Explorer Write

Connection example AD2-ISO I-Mode:

Connection example


Connection example AD2-ISO U-Mode:

Connection example


Connection example AD2-ISO with extended U-Mode:

Connection example

Screwless connector system

The customer-side connection wiring of the inputs and outputs is carried out using screwless, pluggable terminal strips. The conductor connection is made using a so-called actuating tool.
A locking and ejecting mechanism facilitates the insertion and removal of the complete terminal strip.

Handling:

Steps 1-5

Step 1

See the scope of delivery for the operating tool.

Wago Betaetigungswerkzeug 615 464 Kopie
Step 2

Insert the operating tool firmly into the side opening in the direction of the conductor connection.

Konf Werkz Montage2 615 464 Kopie
Step 3

Now insert the stripped conductor into the open clamp contact.

Konf Werkz Montage3 615 464 Kopie
Step 4

Pull out the operating tool again.

Konf Werkz Montage4 615 464 Kopie
Step 5

Check that the conductor is properly connected. It should now no longer be possible to pull it out easily.

Konf Werkz Montage5 615 464 Kopie

Manual

DDT Icons Downloads PDF Transparent 250606

Manual UC-CANopen modules

Quickstart - Hardware description - CANopen protocol
Commissioning/Quickstart

  • Safety instructions
  • Connecting the power supply
  • Installation
  • Connecting the I/O connectors

Hardware description

  • List of technical data
  • Definition of the LEDs
  • Pin assignment of the connectors
  • Connection examples

CANopen protocol

  • Identifier
  • Network management
  • Information on communication, manufacturer and device profile
  • Access via SDOs
  • Device monitoring
  • Information on the CAN bus length

UC-CANopen firmware

DDT-Icons-Downloads_ZIP_transparent_250606

UC-CANopen firmware files

This ZIP file contains all firmware files for the UC-CANopen series.

You can use these files to renew or update the firmware of your CANopen module.


CANopen EDS files

DDT-Icons-Downloads_ZIP_transparent_250606

CANopen EDS files

This ZIP file contains all EDS files for the CANopen modules.

The EDS files are used to control a CANopen module.

5-pin plug connector

Enables the power supply to be connected to the DEDITEC module.

  • Type: Phoenix Contact® - 1876343
  • 100 % mismatch protected
  • For all conductor types from 0.2 mm² to 2.5 mm²
Zbh Steck 05 Gew 600

16-pin plug connector

Required for connecting inputs and outputs of the DEDITEC module.

  • Type: WAGO® 713-1108/037-000
  • Plug-in female multipoint connector with locking mechanism
  • 100 % mismatch protected
  • 1-wire connection for all conductor types up to 1.5 mm²
ZBH STECK 16 AUSW 600

Actuating tool for Wago connectors

Used to open and close the terminal contacts on the WAGO® connectors.

  • Type: WAGO® - 734-231
Zbh Steck Werkz 600

5-pin plug connector

Enables the power supply to be connected to the DEDITEC module.

  • Type: Phoenix Contact® - 1876343
  • 100 % mismatch protected
  • For all conductor types from 0.2 mm² to 2.5 mm²
Zbh Steck 05 Gew 600

16-pin plug connector

Required for connecting inputs and outputs of the DEDITEC module.

  • Type: WAGO® 713-1108/037-000
  • Plug-in female multipoint connector with locking mechanism
  • 100 % mismatch protected
  • 1-wire connection for all conductor types up to 1.5 mm²
ZBH STECK 16 AUSW 600

Actuating tool for Wago connectors

Used to open and close the terminal contacts on the WAGO® connectors.

  • Type: WAGO® - 734-231
Zbh Steck Werkz 600

DIN-Rail connector

The DIN rail connector is a single BUS segment that enables connection to other modules. It is clipped into the top-hat rail and plugged onto the side of an existing DIN rail connector.

  • Type: Phoenix Contact® - 2203852
  • Connection of a NET or UC module
  • For expanding the NET or UC bus system
  • 1 Piece
Din Rail Bus 615 464

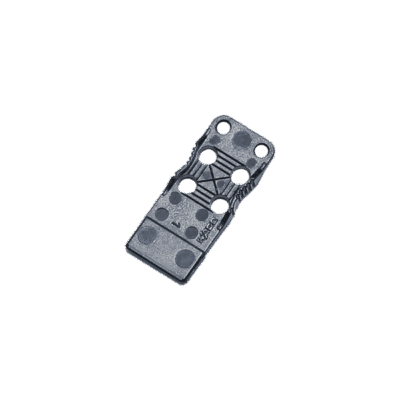

Strain relief plate for 16 or 18-pin Wago connectors

The strain relief plate is pushed onto the center of the female connector and enables the connected cables or strands to be fixed in place.

  • Type: WAGO® - 713-127
  • Strain relief for the connection wiring
  • Suitable for 16 or 18-pole female connectors
  • Slide onto the female connector from the side
ZBH STECK PL 16
ZBH STECK PL 16 Wago

Top hat rail

Top-hat rail for mounting our control technology modules.

  • DIN rail according to DIN EN 50022
  • Type: Phoenix Contact® - 1208131
  • Dimensions in mm: 450 x 35 x 7.5 (L x W x H)
Zbhhutschiene 1m 600

24V/2A power supply unit for top-hat rail mounting

The DR-4524 from Mean Well is a 48W power supply unit for DIN rail mounting for industrial applications. It offers protection against short circuit, overload, overvoltage and overheating.

  • Input voltage range: 85 V.. 264 V AC / 120 V DC ... 370 V DC
  • Output voltage: 24 V DC
  • Output current: 2 A
  • Rated power: 48 W
Zbhnetzteil 24v 2a 600
