Highlights
- Monitoring of critical devices that must remain operational at all times
- Driver support for all programming languages
- Independent of operating system
- Enables easy and user-friendly configuration
- Extensive command set via proprietary driver library

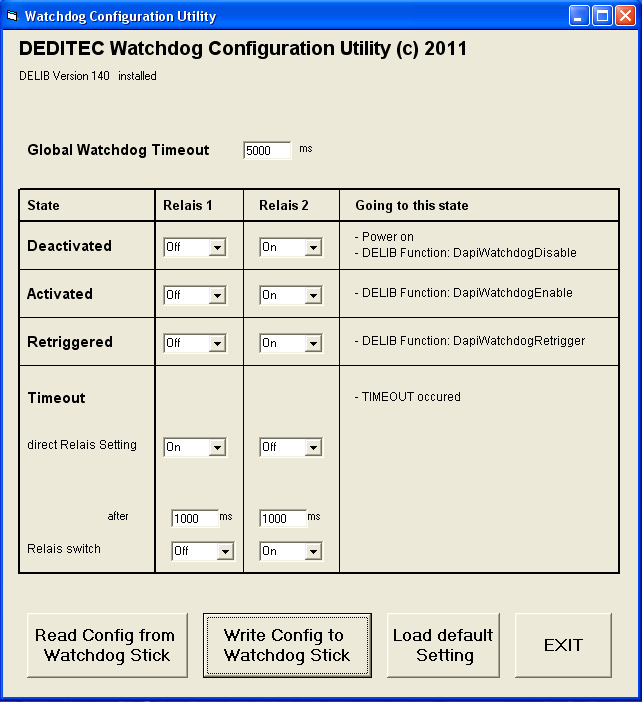

Watchdog Configuration Utility
The Watchdog Configuration Utility allows full customization of the USB Watchdog Stick.
Custom Configuration of the Watchdog Stick
The Watchdog Configuration Utility simplifies fast and convenient setup of the Watchdog Stick. The configuration of both relays can be fully tailored by the user to meet specific application requirements.
Configuration Storage in the Watchdog Stick
The Watchdog configuration can be read out from the stick, edited comfortably on a PC, and then written back to the Watchdog Stick.
Application Examples
Thanks to its flexible configuration, each relay state can be individually assigned to the corresponding watchdog state (Deactivated, Activated, Retriggered, Timeout). This makes it possible not only to connect a reset button directly but also to perform a “reset-less” PC reboot using an optionally available ATX/BTX cable.
External devices such as SMS modems, buzzers, and more can also be easily configured and triggered this way.
Free Firmware Upgrade for Existing Watchdog Sticks
To support this, DEDITEC offers a free update of the Watchdog firmware. A simple firmware update is all it takes to bring an older Watchdog Stick up to the latest firmware version.
