Highlights

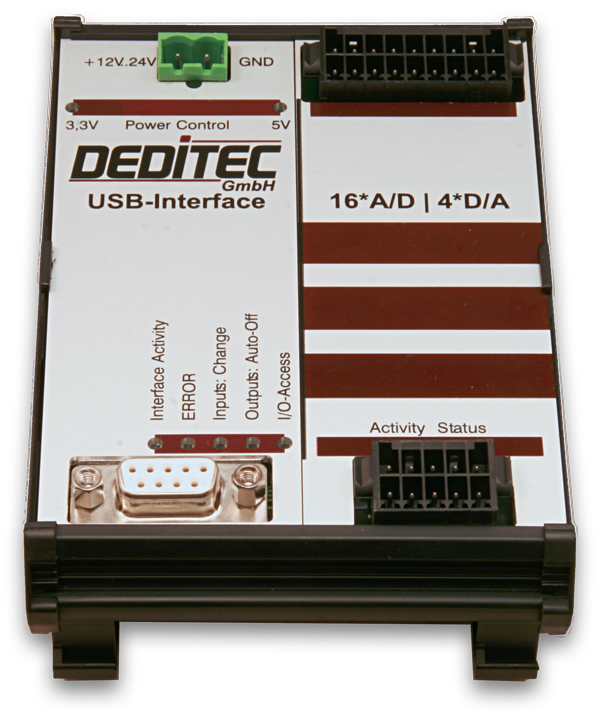

- USB interface-controlled input/output module
- 16 analog input channels
- 16-bit A/D converter with 4 µs conversion time
- Voltage modes: 0–5V, 0–10V, ±5V, ±10V
- Current mode: 0–20 mA (optional)
- 4 analog output channels
- Voltage modes: 0–5V, 0–10V, ±5V, ±10V
- DIN rail module
- Pluggable terminal blocks for connection wiring
A/D and D/A Converters from the RO Series
DEDITEC expands its product portfolio with a wide range of A/D and D/A modules.
Brühl, 23/11/2009
A/D and D/A Converters from the RO Series
DEDITEC expands its product range with a variety of A/D and D/A modules. These compact modules can be combined with all digital input/output modules from the RO series.
Available as A/D, D/A or Combo Modules
Modules with 16 A/D channels or 4 D/A channels, each with 16-bit resolution, are available. A combined solution (A/D and D/A in one module) is also offered.
A unique feature of the DEDITEC modular design is the availability of versions with 32, 48, or even 64 A/D input channels. Likewise, versions with more than 32 D/A outputs are available.
Voltage Ranges for A/D:
±10V, ±5V, 0–10V, and 0–5V.
All ranges can be configured via software.
Voltage Ranges for D/A:
0–5V, 0–10V, ±5V, and ±10V.
Interface Options
Interface variants include galvanically isolated USB, RS-232, RS-485, and CAN modules.
Existing RO series modules can easily be expanded with an A/D or D/A module.
Installation & Delivery Contents
The included DELIB driver library for Windows allows easy control using common programming languages.
User-friendly commands such as SetVolt and GetVolt are available, so developers do not need to perform manual voltage conversions.
Precompiled test programs and source code examples for C, Delphi, and Visual Basic are included in the delivery, or can be downloaded in advance from the company website.
