CANopen module with 2 analog outputs – 16-bit D/A converter with galvanic isolation
€ 552,16 Incl. 19% VAT plus shipping
Our promise to you

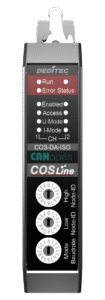

The UC-CANOPEN-DA2-16ISO module has 2 analog outputs, each with 16-bit resolution. It can be operated both as a stand-alone device and in a network of several CANopen modules.
Due to the CANopen profiles according to CiA® specifications CiA 301, CiA 305 and CiA 401, this module is ideally suited for almost all areas of application in modern automation technology.
- CANopen profiles according to CiA® specifications CiA 301, CiA 305, and CiA 401
- Galvanic isolation of the CAN bus
- Two D/A channels, each with 16-bit resolution
- Both D/A channels galvanically isolated from each other
- Galvanic isolation: max. 1 kV
- Voltage ranges: 0–5 V, 0–10 V, +5 V, +10 V
- Current ranges: 0–20 mA, 4–20 mA, 0–24 mA
- Node ID and baud rate configurable via DIP switch or LSS
