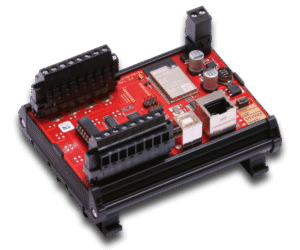

The WEU-OPTOIN-8 is a compact module with an Ethernet and USB interface. In addition, you can integrate and control this module into your home or company network via WiFi. It has 8 optocoupler inputs for the digital acquisition of voltages in the range from 5V to 30V. Four DIP switches facilitate network configuration and a series of status LEDs visualize the switching states of the optocouplers, among other things. The connection wiring is made via two 8-pole plug-in screw terminals.
- 8 optocoupler inputs: 15V – 30V (optional 5V – 15V) AC / DC
- Galvanic isolation of the inputs: max. 2500V
- 16 bit counter per channel (up to 100Hz)
- Filter for counters / flip-flops adjustable from 5ms to 255ms
- Filter for sampling the digital input channels from 1ms to 255ms
- Connection via WiFi possible
- WPS function
- USB 2.0 interface up to 480 Mbit
