RO-SER DIN rail RS-232/RS-485 module with inputs for 2/4 incremental encoders
€ 1.022,81 – € 1.792,14 Incl. 19% VAT plus shipping
Our promise to you

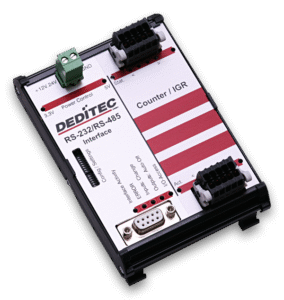

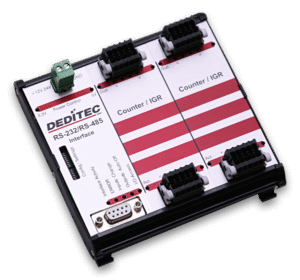

The RO-SER-CNT/IGR2-4 module is available in versions with 2 or 4 incremental encoder inputs. The serial standards RS-232 or RS-485 are available as interfaces. However, the existing USB 2.0 connection can also be used.
- RS-232/RS-485 interface with galvanic isolation
- Open RS-232/485 protocol, plain text mode
- USB 2.0 interface with up to 480 Mbit
- 2 input counters (max. 10 MHz)
- Connection for 2/4 incremental encoders via 3 differential inputs each
- Internal 48-bit counter
- Referencing via limit switches
- Galvanic isolation of the inputs
