RO-SER RS-232/RS-485 module with 4/8 * PT100 inputs (galvanically isolated)
Price range: € 1.022,81 through € 1.792,14 Incl. 19% VAT plus shipping
Our promise to you

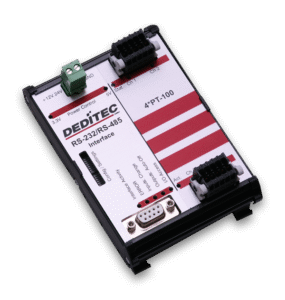

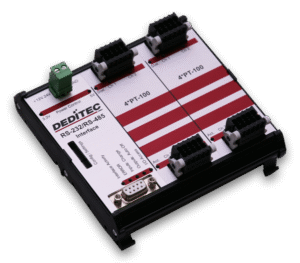

The RO-SER-PT100-4-8 module is available in versions with 4 or 8 PT100 inputs. The serial standards RS-232 or RS-485 are available as interfaces. However, the existing USB 2.0 connection can also be used.
- RS-232/RS-485 interface with galvanic isolation
- Open RS-232/485 protocol, plain text mode
- USB 2.0 interface with up to 480 Mbit
- 4 * PT100 inputs (each galvanically isolated)
- 24-bit A/D converter
- Suitable for 2- and 3-wire connection
- LED status indicator for each input
Configuration of our serial modules (RS-232 / RS-485)
To configure the serial interface, the module must be connected to the PC either via the Ethernet interface or USB interface.
The module can then be accessed and configured in the ICT tool.
The following parameters can be set:
- Preferred mode (115k baud, module address = deactivated, echo = off)
- Baud rate
- Module address (only for RS-485)
- Echo active on/off
- Text mode / Register mode
Changing the interface standard
Switch between RS-232 and RS-485 (applies only to NET and RO series)
The modules are configured for RS-232 operation as standard when delivered. The module can be switched to RS-485 operation by changing the jumper positions. Further information on this can be found in the manual for the respective product.
