16/32/64* Query optocoupler inputs via the CAN bus

Name: 16/32/64* Query optocoupler inputs via the CAN bus
SKU: RO-CAN-O16-64
Availability: InStock

Rated 0 out of 5

0 customer reviews

ab € 611,07

incl. VAT plus Shipping Costs

Desined-in-Germany

OUR PROMISE TO YOU:

Our advantages

New feature!

Extended input filter for Digital-IN / Timeout protection function for Digital-Out.
For more information, see the Description and Technical Data tabs!

Availability: In Stock SKU: RO-CAN-O16-64 Category: RO-CAN

Number of digital inputs

Clear

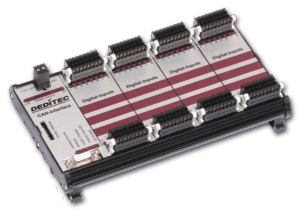

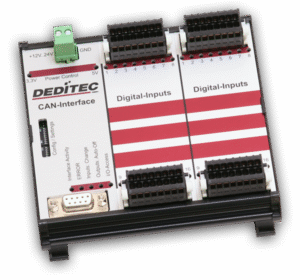

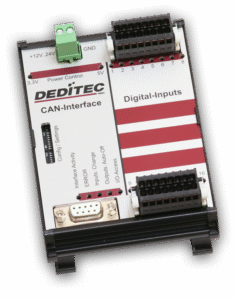

The RO-CAN-O16-64 module is available in versions with 16, 32 or 64 inputs. It has a CAN interface with an open CAN protocol and can, with the help of our automatic RX/TX mode, independently receive or send CAN packets within a network.

CAN interface with galvanic isolation
Open CAN protocol
Automatic send/receive mode
16/32/64 Digital inputs: 15V – 30V AC/DC (optional 5V – 15V)
16 bit counter per channel (up to 100Hz)
LED status display per input channel

Digital inputs

With our optocoupler inputs, digital signal states can be recorded within a voltage range of 5V to 30V AC or DC. Input and output circuits are galvanically isolated from each other up to 2.5kV.

Digital In Input Filter

With our Digital-In modules, an input filter can be set in a time interval of 1ms…255ms to filter interference pulses.

This means that AC signals can also be detected cleanly.

Counter

Each input has a 16 bit counter that can count up to 65535 pulses. If the maximum counter value is exceeded, the counting process starts again from zero. By means of a software command, the current status of all input counters can be read from the module simultaneously.

Recording of status changes

Status changes that occur between the readout cycles are reliably detected by internal flip-flops and can be read out separately by software. In addition, such an event is signalled by a status LED. Resetting is done automatically after the flip-flops have been read out.

Automatic send and receive mode

Use our Auto RX/TX mode and automate the workflow of your DEDITEC product by independently processing or sending CAN packets from or to other participants in the network. With our free ICT-Tool you can define via a graphical user interface how the RX and TX packets should be processed. For example, you can read the values of an A/D converter and send them to a CAN module with D/A output.

Different configuration modes

The RO-CAN interface can be configured in three different ways and is selected via DIP switches:
The preferred mode with preset CAN default values, a DIP switch mode where all CAN specifications can be set via DIP switches or a software mode where the setup can be easily defined via our ICT-Tool.

LEDs

Each digital input and output has a separate LED that lights up when the signal state is active. Furthermore, the status of the operating voltage, the communication with the interface, error events or the occurrence of a timeout can be displayed.

Connectors

A screwless system from the manufacturer WAGO Kontakttechnik is used as the connector. The 1-wire female connectors are 100% protected against mismating and have an eject and locking mechanism. All conductor types up to 1.5mm² can be connected.

Software and control

Our DELIB driver library, which is included with the product, makes it easy to address the product via our API.

We offer support for the following programming languages:

C
C++
C#
VB
VBA
VB.Net
Java
Delphi
LabVIEW

We offer support for the following operating systems:

Windows 10 (32bit/64bit)
Windows 8/8.1 (32bit/64bit)
Windows 7 (32bit/64bit)
Windows Vista (32bit/64bit)
Windows XP (32bit/64bit)
Windows Server 2003 (32bit/64bit)
Windows 2000
Linux

Corresponding programming examples can be found in the “Software” section of the products or are included on the driver CD.

General
Power supply via external power supply unit	+ 12V to +24V DC (via two-pin pluggable screw terminal)
LEDs	• Operating voltage • Interface Activity • ERROR • Input state change (only for digital inputs) • Timeout shutdown • One LED per input
DIP switches	• Setting the configuration mode • Setting the transfer rate • Setting the CAN address
Connectors	• Type: Wago contact technology 713-1108/037-000 • Pluggable 16 pin female connector with locking mechanism • 100 % malfunction protected • 1-wire connection for all types of conductors up to 1.5mm²
DIN rail mounting	TS 35
Operating temperature	+10°C .. +50°C
Dim. with 16 Inputs	122mm x 85mm x 51,5mm (HxWxD)
Dim. with 32 Inputs	122mm x 126 mm x 51,5 mm (HxWxD)
Dim. with 64 Inputs	122mm x 208 mm x 51,5 mm (HxWxD)

CAN-Interface
Interface	• CAN 2.0A or CAN 2.0B (galvanically isolated up to 500V) • 1 Mbit/s, 500 Kbit/s, 250 Kbit/s, 125 Kbit/s, 100 Kbit/s, 50 Kbit/s, 20 Kbit/s or 10 Kbit/s • Open CAN protocol • Automatic processing of CAN packets (Auto RX/TX mode) • Connection via 9 pin D-Sub socket

USB-Interface
Interface	• USB 2.0 / USB 1.1 interface with up to 480Mbit • is used to configure the Auto RX/TX mode or to update the firmware

Digital outputs
Timeout-Protection-Function	• Simple and uncomplicated setting of the timeout protection function possible via software • Time-definable automatic activation of the timeout protection function in the Timeout case (between 0.1 seconds and 6553 seconds) • In the timeout case, digital outputs can be activated, deactivated or left unchanged
	• 3 different timeout modes: “normal”, “auto reactive” and “secure outputs” for different procedures in case of a timeout event. In “secure outputs” timeout mode, access to the outputs is blocked after a timeout event, thus preventing further access to the outputs. Unlocking must be done by an additional software command.

Digital inputs
Optocoupler inputs	• 15V to 30V DC/AC signal voltage (optional 5V – 15V DC/AC) • Galvanic isolation between input and output circuit : up to 2.5kV AC for 1 minute • Maximum input current: 14mA
Input filter	• Default value 0ms • Value range 0 (off), 1(ms)…255(ms)
Input counter	• 16 bit counter per channel • Maximum possible counting operations: 65535 / channel • Reset to zero after memory overflow • Internal counting logic up to 100Hz • Programmable filter for input channels (flip-flop and counter): • Minimum low or high pulse duration: 5ms…255ms
Input state flags (flip-flops)	• Detects a change from low to high and high to low level • Detects the input state change between two readout processes • Input state flag is reset during readout

Additional information

Weight	N/A
Number of digital inputs	Module with 16 digital inputs, Module with 32 digital inputs, Module with 64 digital inputs

Overview screen of the ICT tool with all functions. These are described in more detail in the following chapters

General information on the ICT tool

We have developed the new ICT tool to make commissioning our products as easy and straightforward as possible.
This tool combines all the important functions of our old programs, such as the Configuration Utility, Module Demo and DT-Flasher, in one.
With the ICT tool, you can now easily configure, test, diagnose, flash and debug our products.
In the following chapters, we would like to introduce you to our new all-in-one software in more detail.

Module selection

Here you can integrate your modules into the ICT tool by clicking on the “+” symbol, so that you can then configure or test them.

Start screen

Here you can find some important information about your selected module.
In addition, you can display the manual of the module as PDF or HTML version here.
Under “Show module IDs” you can call up all available module IDs. This ID is needed to integrate our products into your software projects.

ICT-Tool module info. Display of the ICT tool when the module is open

ICT Treeview

In the treeview on the left side of the program window, you can see the respective forms that are supported by your module.
With a click you can then display this form in the right part of the program and perform possible configurations or tests.

ICT-Tool Treeview. Presentation of the ICT tool, explanation of the structure

Information on the configuration area in the ICT tool

Info

Here you can view all important module information at just one glance.

Modul-Name
Modul-ID
Firmware-Revision
Interface-Type
Current DIP switch setting (Ethernet modules only)

ICT tool Module information form. Display of various module configurations such as interface, module name and module ID

Identification

Identify your Ethernet module currently addressed by means of LEDs located on the board.
This is especially helpful if several modules are in operation at the same time.

Restart

You can restart your module here. The module status shows whether the restart was successful.

USB-Configuration

Here you can change the module no. of your USB modules. This is necessary if you use several USB modules of the same series.
The module no. can be used to identify exactly which module is to be addressed.

LAN-Info

All important LAN network information at a glance. On this information page, you will find the current LAN settings of your module.

LAN-Configuration

Integrate your module into the home or company network with just a few clicks or control it directly via a 1-to-1 connection.
The following network settings can be changed with the ICT tool.

Boardname
DHCP on/off
IP address
Subnet mask
Standard gateway
TCP Port

ICT tool LAN Config. Settings for the LAN configuration can be made in this area

WiFi-Info

This page shows you all the important WiFi settings.

WiFi-Configuration

Here you can change the network settings of the selected WiFi product.
The following settings can be made:

Boardname
WLAN on/off
Routername
Routerpassword

ICT tool WIFI Config. Settings for the WIFI configuration can be made in this area

WPS

With the WPS function, your module can be quickly and easily, automatically connected to the router (WPS on the router is required)

ICT tool WPS Form. This section explains the WPS function of the module

CAN configuration

With our CAN products in the BS, NET and UC series, settings for the interface and the TX/RX packets can be made using the
ICT tool.
More information can be found here: CAN configuration

Serial configuration

With our serial products in the BS, NET, UC and RO series, changes can be made to the interface using the
ICT-Tool.
More information can be found here: SER configuration

ICT tool SER configuration. Illustration of the setting options for serial modules

TCP encryption

Here you can make settings for the encryption of your module.
The following configurations can be made.

Allow unencrypted protokol on/off
Allow user-encrypted protocol on/off
User-encryption password
Allow admin-encrypted protocol on/off
Admin-encryption password</li
Allow I/O access via webinerface on/off</li

ICT-Tool Encryption-Form. Illustration of the setting options for the encryption functions

NTP-Configuration

Here you can make changes to the NTP service.
The following configurations can be made.

NTP service on/off
Server
Port
Timezone

ICT tool NTP form. Illustration of the setting options for the NTP functions

WEB-Login

Here you can change the login settings of the web interface.
The following configurations can be made.

Session Time
Account name
Account password
Confirm password

ICT-Tool WEB-Login-Form. Illustration of the WEB-Login setting options

D/A Default Values

Here you can set the D/A values and modes with which the module is to be started.
Value and mode can be set individually for each channel..

ICT tool D/A Startup Values. Illustration of the setting options for the startup D/A values

Watchdog Configuration

Here you can make and save settings on your watchdog stick.

Save or Load config

Using the “Save or Load config” function, you can save your entire module configuration in an external XML file.
This way you can always load your module in the original state you want. The following configurations can be saved depending on the module type.

USB configuation
LAN configuation
WiFi configuration
TCP encryption
NTP-Configuration
Serial configuration
CAN configuration

Information on the I/O test area in the ICT tool

Digital Out

Here you can switch the digital outputs of your module on and off.
The following functions can be tested in this form.

Switching the digital outputs on and off channel by channel
Readback of the channels
Setting a digital output for a certain time (module-dependent)
Specifies which status the channels are to assume after the time has elapsed (module-dependent).
Testing the outputs

ICT-Tool Digital Out. Darstellung der Funktionstest für unsere Digital Out Module

Digital In

Here you can read out the status of your digital inputs.
You can take the following information from this form.

Channels status
Number digital in counter (module dependent)
Flip Flop status (module dependent)

ICT-Tool Digital In. Darstellung der Funktionstest für unsere Digital In Module

TTL I/O

Here you can switch the digital outputs of the module on or off.
In addition, you can set the TTL direction for up to 8 channels block by block. This setting remains until the module is restarted.
The following functions can be tested in this form.

Switching the TTL outputs on and off channel by channel (TTL output)
Output Readback
Testing the outputs (TTL output)
Input Readback
Set TTL direction

ICT tool Digital Out TTL. Illustration of the function test for our Digital Out TTL modules

Analog Out

Here you can set the analog outputs of the module.
You can set the D/A value and mode for each channel individually or all together..

Analog In

Here you can read the A/D – value of the channels.

In addition, A/D mode and filters for all channels can be set here.

ICT tool Analog In. Illustration of the function test for our Analog In modules

CAN Runtime Parameter

Here you can change CAN settings of the interface, RX and TX packets in runtime

Baudrate
Extended ID
Active on/off
CAN-ID
Mode

ICT-Tool CAN Runtime. Setting options for CAN parameters in runtime

CNT48

Here you can read out the count status of your counter module.

Puls Generator

Here you can test the channels of our pulse generator modules.

ICT-Tool Puls Gen. Illustration of the function test for our pulse generator modules

PWM Out

Here you can make settings to the frequency of the PWM channels.

Temp

Here you can read out the created temperatures channel by channel.

Graphical representation

Here you can display the measured values of Analog In, Temperature or Fifo-IN graphically.

ICT-Tool A/D Graph. Display of the A/D values as a graphical form e.g. sawtooth

I/O – Timeout

With the help of the timeout function in the I/O area you may simulate a timeout event of your module.

Indicates by flashing, the connection to the module
Removing the checkmark triggers a timeout event
The user interface can be updated here after a timeout case Manuel
Shows the current timeout status
Here you can set the timeout mode
Here you can set the time in which the timeout should be triggered
Enables / disables the timeout

ICT-Tool Timeout. Explanation of the ICT tool timeout function

Configuration

Configuration of CAN modules

Depending on the product series, our CAN modules can be configured either by software or DIP switches. Depending on the mode used, the modules are controlled via the open CAN protocol (2.0A or 2.0B) or via the automatic receive mode (Auto-RX) or automatic transmit mode (Auto-TX). The Auto-TX mode allows cyclic transmission of data packets, optionally with analog or digital input states to other CAN addresses. Alternatively, a trigger event can be defined. Here a data packet is only transmitted if a data packet on a certain CAN ID has been received before (e.g. CAN sync to ID 0x80). With the Auto-RX mode, however, received data packets are forwarded directly to analog or digital outputs. For example, relay outputs can be set via another CAN bus participant.

The 3 CAN operating modes

Depending on the product series, you can make CAN settings in different ways.

1. Software mode (for NET series, UC series, RO series and BS series)

In software mode, the parameters of the CAN interface are completely configured via the ICT-Tool included in the scope of delivery. In addition to the baud rate, CAN address and other settings, automatic send and receive packets can also be set up.

2. Preferred mode (RO series and BS series only)

If the product is operated in preferred mode, the following default values are used for communication:

Baud rate: 100 kHz
CAN-ID: 0x100
Master-ID: 1

3. Dip switch mode (RO series only)

The following CAN parameters can be set by means of DIP switches:

Baud rate
CAN address

ICT-Tool

With the help of the ICT-Tool settings of the CAN interface can be read out or changed quickly and easily.

Status Interface

Here you can find information about the status of the CAN interface

Baud rate
Module address
Receiving address
CAN-Status
Extended ID
CAN-Modus

Status TX/RX

Here you can find information about the TX / RX packages

Number of packets sent / received
TX / RX – packets per second
Average sent / received packets

Config Interface

Here settings can be made on the CAN interface.

Baud rate
Adress Bit-mode
Module address
Receiving address

Config I/O Init

Here you can configure the CAN settings of the connected submodules.

A/D mode
A/D filter
D/A mode
Counter mode
Timeout
CNT48 mode
CNT48 submode
CNT48 filter

Config TX-Mode

Here you can make settings to the TX packet configuration.

activate / deactivate
Trigger mode
Interval
Use extended ID
Send to CAN ID
TX-Mode

Config RX-Mode

Here you can make settings to the RX package configuration.

activate / deactivate
Use extended ID
Receive from CAN ID
RX-Mode

More details about the control and some programming examples can be found in the programming section.

M2M-CAN

Machine-to-machine, or M2M for short, involves direct communication between two or more modules. Analog or digital data can be sent channel by channel from a source module via the CAN bus to channels of one or more target modules. All products that have a CAN interface are supported. For communication via CAN, the controlled modules only need to be connected to the CAN bus.

M2M-CAN Configuration

In this example, CAN packets are sent every 500ms via the CAN bus to CAN ID 700
These settings can be made in the ICT tool in the CAN-Config area.

Block diagram RO-O16

RO-O16

Block diagram RO-O16Counter / Flip-Flop control

Connection example Optoin

Connection example

Screwless connector system

The customer’s connection wiring of the inputs and outputs is carried out via screwless, pluggable terminal strips. The conductor connection is made by a so-called actuating tool.
A locking and ejection mechanism facilitates the insertion and removal of the complete terminal strip.

Handling

Step 1

Remove the operating tool from the scope of delivery.

Step 2

Insert the operating tool firmly into the side opening in the direction of conductor connection.

Step 3

Now insert the stripped conductor into the open terminal contact.

Schritt 4

Pull the operating tool out again.

Step 5

Check the correct connection of the conductor. It should now no longer be possible to pull it out easily.

Manual RO-Serie

Hard- and Software-description

Download

Description of the measurement modules
Configuration of the different module interfaces
Installation of the DELIB driver library

Software packages ICT tool / DELIB driver library

Manual of the software package (ICT tool + DELIB)

Documentation of the ICT tool and all commands of the driver library

Download

Windows 10, 8, Vista, 7, XP, 2000 andLinux
Moduel open/close functions
Digital inputs: reading 1 / 8 / 16 / 32 / 64 bit
Digital outputs: Write 1 / 8 / 16 / 32 / 64 bit
A/D Lesen: read, read_volt, read_mA, A/D Modus einstellen
D/A schreiben: write, write_volt, write_mA, D/A-Modus einstellen

64-bit software package (ICT tool + DELIB) for Windows

For Windows 11/10, Windows 7, Windows 8, Vista, XP and 2000

Download

Software package for the 64-bit version of the ICT tool and the DELIB driver library. systems are supported:

64 bit

Windows 11/10 x64
Windows 7 x64
Windows 8 x64
Windows Server 2012 x64
Windows Server 2008 x64
Windows Vista x64
Windows XP x64
Windows Server 2003 x64

Included software

DT-Flasher x64
Software to update DEDITEC module to the latest version
DELIB Configuration Utility x64
Set configuration of module addresses
DELIB Module Config x64
Configuration of module-specific settings
CAN Configuration Utility x64
Set configuration of CAN modules
DELIB Module Demo x64
Enables manual switching of a module
DELIB Command Line Interface x64
Enables the execution of DELIB commands in the command line
Watchdog Configuration Utility x64
Set configuration of a watchdog stick

32-bit software package (ICT tool + DELIB) for Windows

For Windows 11/10, Windows 7, Windows 8, Vista, XP and 2000

Download

Software package for the 32-bit version of the ICT tool and the DELIB driver library.

The following operating systems are compatible:
32-Bit

- Windows 11/10
- Windows 7
- Windows 8
- Windows Server 2012
- Windows Server 2008
- Windows Vista
- Windows XP
- Windows Server 2003

64-Bit

Windows 10 x64
Windows 7 x64
Windows 8 x64
Windows Server 2012 x64
Windows Server 2008 x64
Windows Vista x64
Windows XP x64
Windows Server 2003 x64

Included software

DT-Flasher
Software to update DEDITEC module to the latest version
DELIB Configuration Utility
Set configuration of module addresses
DELIB Module Config
Configuration of module-specific settings
CAN Configuration Utility
Set configuration of CAN modules
DELIB Module Demo
Enables manual switching of a module
DELIB Command Line Interface
Enables the execution of DELIB commands in the command line
Watchdog Configuration Utility
Set configuration of a watchdog stick

Attention:

With this version of the driver library, only 32-bit applications can be created, which can then be run on 32- and 64-bit systems.

DELIB driver library for Linux (32/64-bit)

For 32/64-bit Linux distributions starting with kernel 2.6.x

Download

DELIB driver library for Linux distributions (32/64-bit) starting with kernel 2.6.x

This driver package includes the following components:

DELIB USB driver
DELIB Ethernet driver
DELIB CLI

DELIB USB driver

Supports the following products:

NET-Series (via USB interface)
RO-USB-Series
BS-USB-Series
USB-Mini-Sticks
USB-Watchdog
USB-OPTION-8 / USB-RELAIS-8
USB-TTL-32 / USB-TTL-64

Note:

With the standard USB driver, you can access several USB products with different module IDs (for example one RO-USB and one USB-OPTOIN-8). Therefore, no additional driver installation is required.

If you want to access several USB products with the same module ID (for example one USB-OPTOIN-8 and one USB-RELAIS-8), you have to install additionally the Linux FTDI driver. The FTDI driver can be found at http://www.ftdichip.com.

DELIB Ethernet driver

Supports the following products:

NET-Series (via Ethernet Interface)
RO-ETH-Series
RO-ETH/LC-Series
BS-ETH-Serie
ETH-OPTION-8 / ETH-RELAIS-8
ETH-TTL-64

DELIB CLI

With the DELIB CLI (Command Line Interface) for Linux it is possible so controll all I/O’s over the command-line.

DELIB - Sample-Sources - Installer (approx. 10 MB)

Sample programs for different programming languages (Also in DELIB Setup included)

Download

Sample programs for different programming languages (Also in DELIB Setup included)

C (Microsoft Visual C++ 6.0, Borland C)
C++ (Microsoft Visual C++ 6.0)
C# (Microsoft Visual C# 2008 to 2015)
Delphi (Borland Delphi 7)
VB (Microsoft Visual Basic 6.0)
VB.NET (Microsoft Visual Basic 2008 to 2015)
Java (Java native interface)
Java.dll (Ethernet protocol for ethernet products)

Download

Hardware-Updates (Firmware flashfile package)

Firmware flashfile package for the ICT-Tool

Download

The firmware flash file package can also be downloaded directly from the ICT tool.

This package contains firmware files for the following series:

STARTER-Series
BS-Series
RO-Series
NET-Series
UC-Series
CAN-IO-Box
Development tools

Private: DEDITEC driver CD

DEDITEC Driver CD with many helpful tools and manuals for commissioning your DEDITEC products.

DELIB driver library for Windows
Test and configuration software
Manuals
Data sheets
Example programs for C++, C#, VB, VB.Net, Delphi, LabVIEW

2 pin plug connector

Allows the power supply to be connected to the DEDITEC module

Type: Phoenix Contact 1783287
100 % malfunction protected
For all conductor types from 0.2mm² to 2.5mm²

16 pol connector

Required to connect your application to the DEDITEC module

Type: Wago Kontakttechnik 713-1108/037-000
Pluggable female connector with locking mechanism
100 % malfunction protected
1-wire connection for all types of conductors up to 1.5mm²

Tool for wiring connectors

Serves to open and close the clamp contacts on the Wago connectors.

Type: Wago Kontakttechnik 734-231

2 meter USB A/B connection cable

2 meter USB connection cable A to B.

Type: Plug A to plug B
length: 1,8m

Optional input voltage range 5V..15V RO

With this option the input voltage range of the RO-OPTOIN modules can be reduced to 5V to 15V. There are always 4 channels per ordered quantity converted by us.

Input voltage range 5V to 15V AC / DC
4 channels

USB watchdog stick with 2 relays for shift operations

[ref type="prod-group-kurzbeschr-converter"]

This USB-WATCHDOG-STICK monitors your operating PC or server and can reset the hardware independently in case of a program crash. Simply integrate the function of the Watchdog Stick into your application. As soon as a timeout occurs and the watchdog stick is no longer periodically reset, the two relay outputs are switched through. With an appropriate connection cabling, for example, the PC reset could be activated, an external SMS modem can send warnings or a connected siren signals an alarm. With the help of our free configuration tool, you can define how the relays should switch in case of an error.

USB 2.0 / USB 1.1 interface
Watchdog function
Monitoring your control PC or server
Timeout times adjustable from 10ms to 10h
Windows Watchdog API
2 NO contact relay (NO)
Connection cable with DSUB9 socket (approx. 1.8m)

Power supply 24V/2A for DIN rail mounting

The DR-4524 from Mean Well is a 48W rail mount power supply for industrial applications. It offers protection against short circuit, overload, overvoltage and overheating.

Input voltage range: 85V… 264V AC / 120V DC … 370V DC
Output voltage: 24V DC
Output current: 2A
Nominal power: 48W

230V din rail relay

With this 230V relay can you reduce your voltage to 12V. The 12V signal can be read by our opto coupler inputs.

Max switching current 250V AC
Coil current 4,5mA

2 pin plug connector

Allows the power supply to be connected to the DEDITEC module

Type: Phoenix Contact 1783287
100 % malfunction protected
For all conductor types from 0.2mm² to 2.5mm²

16 pol connector

Required to connect your application to the DEDITEC module

Type: Wago Kontakttechnik 713-1108/037-000
Pluggable female connector with locking mechanism
100 % malfunction protected
1-wire connection for all types of conductors up to 1.5mm²

Strain relief plate for 16 or 18 pole Wago connectors

A strain relief plate that can be mounted centrally between the conductor entries facilitates the plugging and unplugging process and allows easy access to the actuation openings even when wired.

Type: Wago / 713-127
Suitable for 16/18 pole female connectors with conductor connection
Mating and unmating aid for Wago connectors
Strain relief of the individual wired conductors
Easy mounting

Tool for wiring connectors

Serves to open and close the clamp contacts on the Wago connectors.

Type: Wago Kontakttechnik 734-231

DIN Rail

Top-hat rail for mounting our control technology modules.

Top-hat rail according to DIN EN 50022
Type: Phoenix Contact / 1208131
Dimensions in mm: 450 x 35 x 7.5 (L x W x D)

Reviews

There are no reviews yet.

Be the first to review “16/32/64* Query optocoupler inputs via the CAN bus”

Use our advantages

DEDITEC Logo

Lifetime
updates

Free soft- & hardware(firmware)-updates.
Enjoy our lifetime update service.

DEDITEC Logo

5 years
Delivery availability

We offer at least 5 years delivery availability for our products.
Our experience shows that it is even about 10 years.

DEDITEC Logo

Questions about the product? Product support

Do you have any technical or commercial questions about the product before you buy?
Please contact us in advance.

DEDITEC Logo

Customer-
modifications

Our products often serve as the basis for customer-specific solutions.
Just get in touch with us.

DEDITEC Logo

We are
always there for you!

Since its foundation in 2008, Dipl. Ing. Jürgen Siebert has been the managing director of DEDITEC GmbH. He will also be happy to advise you personally.

Product- & Service-Hotline: +49 (0) 22 32 / 50 40 8 – 40

Questions about the product or order: support@deditec.de
