DIN rail CAN-Module with inputs for 2/4 incremental encoders

0 customer reviews

ab € 1.390,52

incl. VAT plus Shipping Costs


To our advantages



New feature!

Extended input filter for Digital-IN / Timeout protection function for Digital-Out.
For more information, see the Description and Technical Data tabs!

Availability: In Stock SKU: RO-CAN-CNT/IGR2/4 Category:

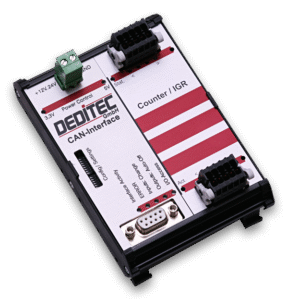

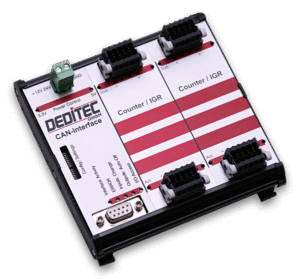

The RO-CAN-CNT/IGR2/4 module is available in versions with 2 or 4 incremental encoder inputs. It has a CAN interface with an open CAN protocol and can, with the help of our automatic RX/TX mode, independently receive or send CAN packets within a network.

  • CAN interface with galvanic isolation
  • Open CAN protocol
  • Automatic send/receive mode
  • 2 input counters (max. 10 MHz)
  • Connection for 2/4 incremental encoder via 3 differential inputs each
  • Internal 48-bit counter
  • Referencing by limit position switch
  • Galvanic isolation of the inputs

Incremental encoder input

With our IGR modules, the signals from incremental or rotary encoders can be evaluated. They are used to detect changes in angle or position and can thus determine the distance travelled and the direction of travel. In addition to position determination, incremental encoders can be used to measure speeds. The number of pulses per measured unit of time thus determines the absolute speed. Typically, the zero position of incremental encoders is unknown after switch-on. Therefore they must be referenced before the measurement is started.

Automatic send and receive mode

Use our Auto RX/TX mode and automate the workflow of your DEDITEC product by independently processing or sending CAN packets from or to other participants in the network. With our free tool “CAN Configuration Utility” you can define via a graphical user interface how the RX and TX packets should be processed. For example, you can read the values of an A/D converter and send them to a CAN module with D/A output.



Different configuration modes

The RO-CAN interface can be configured in three different ways and is selected via DIP switches:
The preferred mode with preset CAN default values, a DIP switch mode where all CAN specifications can be set via DIP switches or a software mode where the setup can be easily defined via our CAN Configuration Utility.

LEDs

Each digital input and output has a separate LED that lights up when the signal state is active. Furthermore, the status of the operating voltage, the communication with the interface, error events or the occurrence of a timeout can be displayed.

Connectors

A screwless system from the manufacturer WAGO Kontakttechnik is used as the connector. The 1-wire female connectors are 100% protected against mismating and have an eject and locking mechanism. All conductor types up to 1.5mm² can be connected.

Software and control

Our DELIB driver library, which is included with the product, makes it easy to address the product via our API.



We offer support for the following programming languages:

  • C
  • C++
  • C#
  • VB
  • VBA
  • VB.Net
  • Java
  • Delphi
  • LabVIEW

We offer support for the following operating systems:

  • Windows 10 (32bit/64bit)
  • Windows 8/8.1 (32bit/64bit)
  • Windows 7 (32bit/64bit)
  • Windows Vista (32bit/64bit)
  • Windows XP (32bit/64bit)
  • Windows Server 2003 (32bit/64bit)
  • Windows 2000
  • Linux

Corresponding programming examples can be found in the “Software” section of the products or are included on the driver CD.

General
Power supply via external power supply unit + 12V to +24V DC (via two-pin pluggable screw terminal)
LEDs • Operating voltage
• Interface Activity
• ERROR
• Input state change (only for digital inputs)
• Timeout shutdown
• Activity LED – flashes when accessing the IGR module
• Status LED – flashes when accessing the incremental encoder
• Direction LED’s – lights up for left or right direction of rotation
• Reset function – simultaneous flashing of both direction LED’s
DIP switches • Setting the configuration mode
• Setting the transfer rate
• Setting the CAN address
Connectors • Type: Wago contact technology 713-1105/037-000
• Pluggable 10 pin female connector with locking mechanism
• 100 % malfunction protected
• 1-wire connection for all types of conductors up to 1.5mm²
DIN rail mounting TS 35
Operating temperature +10°C .. +50°C
Dimensions with 2 incr. inputs 122mm x 85 mm x 51,5 mm (HxWxD)
Dimensions with 4 incr. inputs 122mm x 126mm x 51,5mm  (HxWxD)

CAN-Interface
Interface • CAN 2.0A or CAN 2.0B (galvanically isolated up to 500V)
• 1 Mbit/s, 500 Kbit/s, 250 Kbit/s, 125 Kbit/s, 100 Kbit/s, 50 Kbit/s, 20 Kbit/s or 10 Kbit/s
• Open CAN protocol
• Automatic processing of CAN packets (Auto RX/TX mode)
• Connection via 9 pin D-Sub socket

USB-Interface
Interface • USB 2.0 / USB 1.1 interface with up to 480Mbit
• is used to configure the Auto RX/TX mode or to update the firmware

Incremental encoder module
Inputs • 2 incremental encoder inputs
• galvanically isolated up to 500V
• 3 differential inputs per incremental encoder input:
• A / A(Inverted) – Phi 0°
• B / B(Inverted) – Phi 90°
• Z / Z(Inverted) – Reset
• Differential input voltage: maximum +-25V
• Input filter configurable via software
Outputs • 2 voltage outputs: +5V/GND, fused with 500mA each
• Suitable for connecting an incremental encoder
Resolution Internal 48-bit counter
Counting frequency max. 10MHz

Additional information

Weight N/A
Number of incremental encoders

,

Configuration

Configuration of CAN modules

Depending on the product series, our CAN modules can be configured either by software or DIP switches. Depending on the mode used, the modules are controlled via the open CAN protocol (2.0A or 2.0B) or via the automatic receive mode (Auto-RX) or automatic transmit mode (Auto-TX). The Auto-TX mode allows cyclic transmission of data packets, optionally with analog or digital input states to other CAN addresses. Alternatively, a trigger event can be defined. Here a data packet is only transmitted if a data packet on a certain CAN ID has been received before (e.g. CAN sync to ID 0x80). With the Auto-RX mode, however, received data packets are forwarded directly to analog or digital outputs. For example, relay outputs can be set via another CAN bus participant.



The 3 CAN operating modes

Depending on the product series, you can make CAN settings in different ways.



1. Software mode (for NET series, UC series, RO series and BS series)

In software mode, the parameters of the CAN interface are completely configured via the DT-ICT-Tool included in the scope of delivery. In addition to the baud rate, CAN address and other settings, automatic send and receive packets can also be set up.



2. Preferred mode (RO series and BS series only)

If the product is operated in preferred mode, the following default values are used for communication:



  • Baud rate: 100 kHz
  • CAN-ID: 0x100
  • Master-ID: 1

3. Dip switch mode (RO series only)

The following CAN parameters can be set by means of DIP switches:



  • Baud rate
  • CAN address



DT-ICT-Tool

With the help of the DT-ICT-Tool settings of the CAN interface can be read out or changed quickly and easily.



Status Interface

Here you can find information about the status of the CAN interface



  • Baud rate
  • Module address
  • Receiving address
  • CAN-Status
  • Extended ID
  • CAN-Modus

Status TX/RX

Here you can find information about the TX / RX packages



  • Number of packets sent / received
  • TX / RX – packets per second
  • Average sent / received packets

Config Interface

Here settings can be made on the CAN interface.



  • Baud rate
  • Adress Bit-mode
  • Module address
  • Receiving address

Config I/O Init

Here you can configure the CAN settings of the connected submodules.



  • A/D mode
  • A/D filter
  • D/A mode
  • Counter mode
  • Timeout
  • CNT48 mode
  • CNT48 submode
  • CNT48 filter

Config TX-Mode

Here you can make settings to the TX packet configuration.



  • activate / deactivate
  • Trigger mode
  • Interval
  • Use extended ID
  • Send to CAN ID
  • TX-Mode

Config RX-Mode

Here you can make settings to the RX package configuration.



  • activate / deactivate
  • Use extended ID
  • Receive from CAN ID
  • RX-Mode

More details about the control and some programming examples can be found in the programming section.

Block diagram RO-CNT/IGR2

RO-CNT/IGR2

Connection example CNT/IGR

Connection example

Screwless connector system

The customer’s connection wiring of the inputs and outputs is carried out via screwless, pluggable terminal strips. The conductor connection is made by a so-called actuating tool.
A locking and ejection mechanism facilitates the insertion and removal of the complete terminal strip.



Handling

Step 1

Remove the operating tool from the scope of delivery.

Step 2

Insert the operating tool firmly into the side opening in the direction of conductor connection.

Step 3

Now insert the stripped conductor into the open terminal contact.

Schritt 4

Pull the operating tool out again.

Step 5

Check the correct connection of the conductor. It should now no longer be possible to pull it out easily.

Manual RO-Serie
