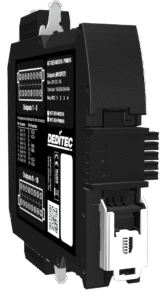

NET-DEV module with 16 MOS/PWM outputs (2A)

Name: NET-DEV module with 16 MOS/PWM outputs (2A)
SKU: NET-DEV-MOS16_P, NET-DEV-PWM16_P
Availability: InStock

Rated 0 out of 5

0 customer reviews

ab € 318,33

incl. VAT plus Shipping Costs

To our advantages

New feature!

Extended input filter for Digital-IN / Timeout protection function for Digital-Out.
For more information, see the Description and Technical Data tabs!

Availability: In Stock SKU: NET-DEV-MOS16_P, NET-DEV-PWM16_P Category: NET-Series

NET DEV PWM/MOS Variations

Clear

The NET-DEV-MOS16_P / NET-DEV-PWM16_P module is available in versions with MOSFET switching outputs or MOSFET PWM outputs. It serves as an extension possibility for the NET-CPU basic modules and is integrated into an existing NET system by means of Plug’n Play connectors (DIN Rail-Bus).

16 digital outputs / MOSFET P-Ch. / optional with PWM function
Max. switching voltage: 48V DC
Max. switching current: 5A DC
Timer Function
Timeout output protection

Digital outputs

MOSFET 5A

With the option “NET-DEV-MOS16_P” P-Ch MOSFETs are used. They are suitable for switching capacities up to 5A DC and are practically wear-free.

PWM outputs

With the option “NET-DEV-MOS16_P” P-Ch MOSFETs were used, which allow a pulse width modulation from 0 to 100%. The PWM frequency is set to 10Hz, 100Hz and 250Hz by default. With this module e.g. dimmers can be realized or motors can be controlled.

Timeout-protection-function [Single channel adjustable new feature since Q4/2020!]

If communication with the DEDITEC module is interrupted in a timeout case, the timeout protection function takes effect. It can be set for each digital output whether it is to be “switched off”, “switched on” or left unchanged. Motors can thus be switched off in a timeout case, for example, and connected horns or other alarm transmitters can be switched on.

New timeout modes [New feature since 2021/Q3!]

3 different timeout modes: “normal”, “auto reactive” and “secure outputs” for different procedures in case of a timeout event.
In “secure outputs” timeout mode, access to the outputs is blocked after a timeout event, thus preventing further access to the outputs.
Unlocking must be done by an additional software command.

Easy installation thanks to DIN rail bus

Thanks to the practical NET-Bus connector, which is clipped into the top-hat rail, individual modules of a system can be added or exchanged very easily. This Plug’n Play principle makes commissioning easier and eliminates the need for tiresome wiring.

LEDs

On the front side of our NET modules there are a number of status LEDs. These give you a quick overview of the most important functions of the modules, such as the switching states of the individual I/Os, module status or whether clean communication via the DIN rail bus is possible. This can be very helpful for fast error analysis, especially for field applications.

Connectors

A screwless system from the manufacturer WAGO Kontakttechnik is used as the connector. The 1-wire female connectors are 100% protected against mismating and have an eject and locking mechanism. All conductor types up to 1.5mm² can be connected.

General
Power supply	Internal, via the DIN-Rail Bus
Power consumption	Max. 20mA/24V
LEDs	• Internal bus communication • Module Status • One LED per output channel
Timer Function	Automatic switching on and off of the outputs within a freely definable time period
Connectors	• Typ: Wago Kontakttechnik 713-1108/037-000 • Pluggable 16 pole female connector with locking mechanism • 100 % malfunction protected • 1-conductor connection for all types of conductors up to 1.5mm².
DIN Rail-Bus	NET bus connector for connection to further NET modules
DIN rail mounting	TS 35
Operating temperature	+10°C to +50°C
Dimensions	135 mm x 22.5 mm x 111 mm (H x W x D)

Digital outputs
Timeout-Protection-Function	• Simple and uncomplicated setting of the timeout protection function possible via software • Time-definable automatic activation of the timeout protection function in the Timeout case (between 0.1 seconds and 6553 seconds) • In the timeout case, digital outputs can be activated, deactivated or left unchanged
	• 3 different timeout modes: “normal”, “auto reactive” and “secure outputs” for different procedures in case of a timeout event. In “secure outputs” timeout mode, access to the outputs is blocked after a timeout event, thus preventing further access to the outputs. Unlocking must be done by an additional software command.


MOSFET switching outputs	• Type: IRFR5505PBF • 16 MOSFET outputs P-Ch. (optocoupler controlled) • Galvanic isolation between MOSFETs and control circuit: bis 2,5kV AC for 1 minute • Max. switching current: 2A DC • Max. Switching voltage: 48V DC • Min. switching voltage: 2.8V DC • Max. switching capacity: 60W DC • Max. total load: 12A per 8 outputs • MOSFET Load Resistance: recommended > 1K
MOSFET PWM outputs	• Type: IRFR5505PBF • 16 PWM outputs P-Ch. (optocoupler controlled) • Galvanic isolation between MOSFETs and control circuit: up to 2.5kV AC for 1 minute • PWM frequencies: 10Hz, 100Hz, 250Hz, or on request • Duty cycle: 0…100% (1% step size) • Max. switching current: 2A DC • Max. switching voltage: 48V DC • Min. switching voltage: 2.8V DC • Max. switching capacity: 60W DC • Max. total load: 12A per 8 outputs • MOSFET Load Resistance: recommended > 1K

[vrm360 canvas_name=s1 model_url=/wp-content/uploads/2021/01/NET-DEV_MOS16_PWM16-2.obj aspect_ratio=2 initial_offset=1.5 autostart=true lightintensity=0.05 amb_lightintensity=1 button_color=#cc0000 border_width=1 border_color=#acacac backgcolor=#f8f8f8]

Additional information

Weight	N/A
Selection Type of outputs	Mosfet outputs (2A), PWM Mosfet outputs (2A)
NET DEV PWM/MOS Variations	NET-DEV-MOS16_P, NET-DEV-PWM16_P

General Handling

DapiOpenModule

This function opens a particular module.

DapiOpenModule

Description

This function opens a specific module

Definition

ULONG DapiOpenModule(ULONG moduleID, ULONG nr);

Parameters

moduleID=Specifies the module to be opened (see delib.h)
nr=Specifies which one (in case of several modules) should be opened.
nr=0 -> 1st module
nr=1 -> 2nd module

Return-Value

handle=Corresponding handle for the module
handle=0 -> module was not found

Comment

The handle returned by this function is needed to identify the module for all other functions.

Programming example

// Open USB module
handle = DapiOpenModule(RO_USB1, 0);
printf(“handle = %x\n”, handle);
if (handle==0)
{
// USB module was not found
printf(“Modul konnte nicht geöffnet werden\n”);
return;
}

DapiCloseModule

This command closes an opened module.

DapiCloseModule

Description

This command closes an open module.

Definition

ULONG DapiCloseModule(ULONG handle);

Parameters

handle=This is the handle of an open module

Return-Value

None

Programming example

// Close module
DapiCloseModule(handle);

DapiGetLastError

This function returns the last registered error. If an error has occurred, it must be deleted with DapiClearLastError(), otherwise any call of DapiGetLastError() will return the "old" error. If multiple modules are used, the use of DapiGetLastErrorByHandle() is recommended.

DapiGetLastError

Description

This function returns the last detected error. If an error occurred, it must be cleared with DapiClearLastError(), otherwise any call to DapiGetLastError() will return the “old” error.
If more than one module should be used, it is recommended to use DapiGetLastLastErrorByHandle().

Definition

ULONG DapiGetLastError(void);

Parameters

None

Return-Value

Error Code
0=no error. (see delib_error_codes.h)

Programming example

BOOL IsError()
{
unsigned char msg[500];
unsigned long error_code = DapiGetLastError();

if (error_code != DAPI_ERR_NONE)
{
DapiGetLastErrorText((unsigned char*) msg, sizeof(msg));
printf(“Error Code = 0x%x * Message = %s\n”, error_code, msg);

DapiClearLastError();

return TRUE;
}

return FALSE;
}

DapiGetLastErrorByHandle

This function returns the last registered error of a particular module (handle). If an error has occurred, it must be deleted with DapiClearLastErrorByHandle(), otherwise any call of DapiGetLastErrorByHandle() will return the "old" error.

DapiGetLastErrorByHandle

Description

This function returns the last detected error of a specific module (handle). If an error occurred, it must be cleared with DapiClearLastErrorByHandle(), otherwise any call to DapiGetLastErrorByHandle() will return the “old” error.

Definition

ULONG DapiGetLastErrorByHandle(ULONG handle);

Parameters

handle=This is the handle of an open module

Return-Value

Error Code
0=no error. (see delib_error_codes.h)

Programming example

BOOL IsError(ULONG handle)
{
unsigned long error_code = DapiGetLastErrorByHandle(handle);

if (error_code != DAPI_ERR_NONE)
{
printf(“Error detected on handle 0x%x – Error Code = 0x%x\n”, handle, error_code);

DapiClearLastErrorByHandle(handle);

return TRUE;
}

return FALSE;
}

DapiGetLastErrorText

This function reads the text of the last registered error. If an error has occurred, it must be cleared with DapiClearLastError(), otherwise every call of DapiGetLastErrorText() returns the "old" error. Definition

DapiGetLastErrorText

Description

This function reads the text of the last detected error. If an error occurred, it must be cleared with DapiClearLastError(), otherwise any call to DapiGetLastErrorText() will return the “old” error.

Definition

ULONG DapiGetLastErrorText(unsigned char * msg, unsigned long msg_length);

Parameters

msg = Buffer for the text to be received
msg_length = Length of the text buffer

Programming example

BOOL IsError()
{
unsigned char msg[500];
unsigned long error_code = DapiGetLastError();

if (error_code != DAPI_ERR_NONE)
{
DapiGetLastErrorText((unsigned char*) msg, sizeof(msg));
printf(“Error Code = 0x%x * Message = %s\n”, error_code, msg);

DapiClearLastError();

return TRUE;
}

return FALSE;
}

DapiClearLastError

This function deletes the last error registered with DapiGetLastError().

DapiClearLastError

Description

This function deletes the last error registered with DapiGetLastError().

Definition

void DapiGetLastError(void);

Parameters

None

Return value

None

Example program

BOOL IsError()
{
unsigned char msg[500];
unsigned long error_code = DapiGetLastError();

if (error_code != DAPI_ERR_NONE)
{
DapiGetLastErrorText((unsigned char*) msg, sizeof(msg));
printf(“Error Code = 0x%x * Message = %s\n”, error_code, msg);

DapiClearLastError();

return TRUE;
}

return FALSE;
}

DapiClearLastErrorByHandle

This function deletes the last error of a particular module (handle), which was registered with DapiGetLastErrorByHandle().

DapiClearLastErrorByHandle

Description

This function deletes the last error of a particular module (handle), which was registered with DapiGetLastErrorByHandle().

Definition

void DapiClearLastErrorByHandle(ULONG handle);

Parameters

handle=This is the handle of an opened module.

Return value

None

Example program

BOOL IsError(ULONG handle)
{
unsigned long error_code = DapiGetLastErrorByHandle(handle);

if (error_code != DAPI_ERR_NONE)
{
printf(“Error detected on handle 0x%x – Error Code = 0x%x\n”, handle, error_code);

DapiClearLastErrorByHandle(handle);

return TRUE;
}

return FALSE;
}

DapiGetDELIBVersion

This function returns the installed DELIB version.

DapiGetDELIBVersion

Description

This function returns the installed DELIB version.

Definition

ULONG DapiGetDELIBVersion(ULONG mode, ULONG par);

Parameters

mode=Mode with which the version is read (must always be 0).
par=This parameter is not defined (must always be 0).

Return-Value

version=Version number of the installed DELIB version [hex]

Programming example

version = DapiGetDELIBVersion(0, 0);
//With installed version 1.32 version = 132(hex)

DapiOpenModuleEx

This function opens a specific module with ethernet interface.The particularity of this command is,that parameters like IP-address, portnumber and the duration of the timeout can be specified. The opening of the module is independent of the DELIB Configuration Utility settings.

DapiOpenModuleEx

Description

This function specifically opens a module with an Ethernet interface. The parameters IP address, port number and the duration of the timeout can be determined.
The module is opened independently of the settings made in the DELIB Configuration Utility.

Definition

ULONG DapiOpenModuleEx(ULONG moduleID, ULONG nr, unsigned char* exbuffer, 0);

Parameters

moduleID = Specifies the module to be opened (see delib.h)
nr = Specifies which one (in case of several modules) is to be opened
nr = 0 -> 1st module
nr = 1 -> 2nd module
exbuffer = buffer for IP address, port number and duration of the timeout

Return-Value

handle = Corresponding handle for the module
handle = 0 -> module was not found

Comment

The handle returned by this function is required to identify the module for all other functions.
This command is supported by all modules with Ethernet interface.

Programming example

// Open ETH-Module with parameter

DAPI_OPENMODULEEX_STRUCT open_buffer;

strcpy((char*) open_buffer.address, “192.168.1.10”);
open_buffer.portno = 0;
open_buffer.timeout = 5000;

handle = DapiOpenModuleEx(RO_ETH, 0, (unsigned char*) &open_buffer, 0);
printf(“Module handle = %x\n”, handle);

Digital output functions

DapiDOSet1

This is the command to set a single output.

DapiDOSet1

Description

This command sets a single output.

Definition

void DapiDOSet1(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output to be set (0 .. )
data= Specifies the data value to be written (0 / 1)

Return-Value

None

Requirements

The following SW feature bits must be supported by the module:

DAPI_SW_FEATURE_BIT_CFG_DO

The following conditions for the transfer parameters must be met:

maxCh = DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_GET_MODULE_CONFIG, DAPI_SPECIAL_GET_MODULE_CONFIG_PAR_DO, 0, 0)
maxCh > ch

DapiDOSet8

This command sets 8 digital outputs simultaneously.

DapiDOSet8

Description

This command sets 8 digital outputs simultaneously.

Definition

void DapiDOSet8(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output from which writing is to start (0, 8, 16, 24, 32, ..)
data=Specifies the data values to be written

Return-Value

None

DapiDOSet16

This command sets 16 digital outputs simultaneously.

DapiDOSet16

Description

This command sets 16 digital outputs simultaneously.

Definition

void DapiDOSet16(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output from which writing is to start (0, 16, 32, ..)
data=Specifies the data values to be written

Return-Value

None

DapiDOSet32

This command sets 32 digital outputs simultaneously.

DapiDOSet32

Description

This command sets 32 digital outputs simultaneously.

Definition

void DapiDOSet32(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output from which writing is to start (0, 32, 64, ..)
data=Specifies the data values to be written

Return-Value

None

Programming example

// Write a value to the outputs
data = 0x0000ff00; // outputs 9-16 are set to 1
DapiDOSet32(handle, 0, data); // Chan Start = 0
printf(“Write to outputs data=0x%x\n”, data);
printf(“key for further\n”);
getch();
// —————————————————-
// Write a value to the outputs
data = 0x80000000; // Output 32 is set to 1
DapiDOSet32(handle, 0, data); // Chan Start = 0
printf(“Write to outputs data=0x%x\n”, data);
printf(“key for further\n”);
getch();
// —————————————————-
// Write a value to the outputs
data = 0x80000000; // Output 64 is set to 1
DapiDOSet32(handle, 32, data); // Chan Start = 32
printf(“Write to outputs data=0x%x\n”, data);
printf(“key for further\n”);
getch();

DapiDOSet64

This command is to set 64 digital outputs.

DapiDOSet64

Description

This command sets 64 digital outputs simultaneously.

Definition

void DapiDOSet64(ULONG handle, ULONG ch, ULONGLONG data);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output from which writing is to start (0, 64, ..)
data=Specifies the data values to be written

Return-Value

None

DapiDOClrBit32

With this command you can change the states of outputs to 0 without changing the states of the neighboring outputs.

DapiDOClrBit32

Description

This command can be used to switch outputs selectively to 0 without changing the states of adjacent outputs.

Definition

void DapiDOClrBit32(uint handle, uint ch, uint data);

Parameters

handle = This is the handle of an open module
ch = Specifies the number of the output from which writing is to start
data = Specifies the data value to be written (up to 32 bits)

Return-Value

None

Comment

Only the bits with a value of 1 in the data parameter are considered by the command.

Programming example

data = 0x1; // Output 0 would be changed to 0. The states of outputs 1-31 won’t be changed
DapiDOSetBit32(handle, 0, data);

data = 0xf; // Outputs 0-3 would be changed to 0. The states of outputs 4-31 won’t be changed
DapiDOSetBit32(handle, 0, data);

data = 0xff; // Outputs 0-7 would be changed to 0. The states of outputs 8-31 won’t be changed
DapiDOSetBit32(handle, 0, data);

data = 0xff000000; // Outputs 23-31 would be changed to 0. The states of outputs 0-21 won’t be changed
DapiDOSetBit32(handle, 0, data);

DapiDOSet1_WithTimer

This function sets a digital output (ch) to a value (data - 0 or 1) for a specified time in msec.

DapiDOSet1_WithTimer

Description

This function sets a digital output (ch) to a value (data – 0 or 1) for a certain time in ms.

Definition

void DapiDOSet1_WithTimer(ULONG handle, ULONG ch, ULONG data, ULONG time_ms);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output to be set (0 .. )
data= Specifies the data value to be written (0 / 1)
time_ms=Specifies the time in which the output is set [ms].

Return-Value

None

Comment

This command is supported by all output modules of the NET series as well as by our RO-O8-R8 module.
This command loses its validity if it is overwritten with other values.
If you want to deactivate the command, it must be overwritten with time_ms=0.

Programming example

DapiDOSet1_WithTimer(handle, 2, 1, 1000);
//Setting channel 2 for 1000msec to 1

DapiDOSetBit32

With this command you can change the states of outputs to 1 without changing the states of the neighboring outputs.

DapiDOSetBit32

Description

This command can be used to switch outputs selectively to 1 without changing the states of adjacent outputs.

Definition

void DapiDOSetBit32(uint handle, uint ch, uint data);

Parameters

handle = This is the handle of an open module
ch = Specifies the number of the output from which writing is to start
data = Specifies the data value to be written (up to 32 bits)

Return-Value

None

Comment

Only the bits with a value of 1 in the data parameter are considered by the command.

Programming example

data = 0x1; // Output 0 would be changed to 1. The states of outputs 1-31 won’t be changed
DapiDOSetBit32(handle, 0, data);

data = 0xf; // Outputs 0-3 would be changed to 1. The states of outputs 4-31 won’t be changed
DapiDOSetBit32(handle, 0, data);

data = 0xff; // Outputs 0-7 would be changed to 1. The states of outputs 8-31 won’t be changed
DapiDOSetBit32(handle, 0, data);

data = 0xff000000; // Outputs 23-31 would be changed to 1. The states of outputs 0-21 won’t be changed
DapiDOSetBit32(handle, 0, data);

DapiDOReadback32

This command reads back the 32 digital outputs.

DapiDOReadback32

Description

This command reads back the 32 digital outputs.

Definition

ULONG DapiDOReadback32(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output from which the read back is to be performed (0, 32, 64, ..)

Return-Value

Status of 32 outputs.

DapiDOReadback64

This command reads the current PWM frequency of the module

DapiDOReadback32

Description

This command reads back the 32 digital outputs.

Definition

ULONG DapiDOReadback32(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output from which the read back is to be performed (0, 32, 64, ..)

Return-Value

Status of 32 outputs.

PWM functions

DapiPWMOutReadback

This command reads the current PWM ratio of one channel

DapiPWMOutReadback

Description

This command reads the PWM ratio of a PWM channel

Definition

float DapiPWMOutReadback(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output to be read

Return-Value

PWM ratio of the channel from 0% to 100%

Programming example

float data = DapiPWMOutReadback(handle, 0);
// Reads the pwm ratio of the first channel
float data = DapiPWMOutReadback(handle, 2);
// Reads the pwm ratio of the second channel

DapiPWMOutSet

This command can set the PWM ratio of one channel

DapiPWMOutSet

Description

This command sets the PWM ratio of a PWM channel

Definition

void DapiPWMOutSet(ULONG handle, ULONG ch, float data);

Parameters

handle=This is the handle of an open module
ch= Specifies the number of the output to be set
data=PWM ratio in from 0% to 100% in 1% steps
Minimum PWM ratio depends on the PWM frequency
10Hz data must be >= 0%.
100Hz data must be >= 2%.
250Hz data must be >= 3%.
1000Hz data must be >= 9%.

Return-Value

None

Programming example

DapiPWMOutSet(handle, 0, 50);
// Sets the pwm ratio of channel 1 to 50% (50% high, 50% low)
DapiPWMOutSet(handle, 1, 100);
// Sets the pwm ratio of channel 2 to 100% (100% high, 0% low)

DapiSpecialCommand - DAPI_SPECIAL_PWM_FREQ_SET

This command can sets the PWM frequency of the module

DapiSpecialCommand – DAPI_SPECIAL_PWM_FREQ_SET

Description

This command sets the PWM frequency of the module

Definition

void DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_PWM, cmd, par1, par2);

Parameters

handle=This is the handle of an open module
cmd=DAPI_SPECIAL_PWM_FREQ_SET
par1=channel area 0 (ch 0-15), 16 (ch 16-31) … etc.
par2=frequency = DAPI_PWM_FREQUENCY_10HZ, DAPI_PWM_FREQUENCY_100HZ, DAPI_PWM_FREQUENCY_250HZ or DAPI_PWM_FREQUENCY_1000Hz

Return-Value

None

Programming example

DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_PWM, DAPI_SPECIAL_PWM_FREQ_SET, 0, DAPI_PWM_FREQUENCY_100HZ);
// Sets the pwm frequency of the module to 100Hz

DapiSpecialCommand - DAPI_SPECIAL_PWM_FREQ_READBACK

This command reads the current PWM frequency of the module

DapiSpecialCommand – DAPI_SPECIAL_PWM_FREQ_READBACK

Description

This command reads the current PWM frequency of the module

Definition

void DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_PWM, cmd, par1, par2);

Parameters

handle=This is the handle of an open module
cmd=DAPI_SPECIAL_PWM_FREQ_READBACK
par1=0
par2=0

Return-Value

uint = DAPI_PWM_FREQUENCY_10HZ, DAPI_PWM_FREQUENCY_100HZ, DAPI_PWM_FREQUENCY_250HZ or DAPI_PWM_FREQUENCY_1000Hz

Programming example

uint frequency = DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_PWM, DAPI_SPECIAL_PWM_FREQ_READBACK, 0, 0);
// Reads the pwm frequency of the module

Web Interface – Interface

All DEDITEC Ethernet modules have a web interface that allows you to make settings conveniently via your web browser and also gives you direct access to the I/Os.

This allows you to access the product with a smartphone, tablet or even a PC via a browser.

The following I/O units are supported:

Digital inputs
Digital inputs (counter function)
Digital outputs
Analog inputs (voltage & current)
Analogue outputs (voltage & current)
PT100 temperature detection
Stepper motor control

You can protect the Ethernet module against unauthorized access with a user system and optional encryption system.

General

Start page of the web interface. The navigation on the left side gives you access to various setting options.

Network configuration

All network settings can be made directly via the web interface.

Usermanager

Here you can define the user name and password for access to the web interface. If the user is inactive, he/she is automatically logged out after the session time has expired.

Status / Reboot

Version of the installed firmware. Functions for restarting and resetting the settings.

Security

In addition to a user/password system for the web interface, we also offer you the option of encrypting the entire network communication. Access to the I/Os can also be blocked.

Supported I/Os

In the following we show you the supported I/Os that you can operate via the web interface.

Digital Inputs

The picture shows the overview of the digital inputs. You can switch between several inputs via the drop-down menu. The column ‘State’ shows whether a signal is present at the input.

Digital Inputs Counter

Our digital inputs have a counting function. The counter reading can be read and reset via the web interface.

Digital Outputs

The digital outputs can be switched via an on/off button. The current status of the outputs can be read back via the ‘Readback’ column.

Analogue Inputs

Current and voltage can also be read out via the web interface. The desired operating mode can be set via the A/D Mode drop-down menu.

Analogue Outputs

Analogue signals can also be output via the web interface. The desired D/A mode can be set via the drop-down menu, as with the analog inputs. The desired value can be written to the outputs using the ‘SET’ button. The column ‘Readback’ shows the current voltage/current output of the D/A converter.

Temperature measurement (PT100)

The temperature measurement is supported by our RO series.

PT100

The current temperature can be read. If no sensor is connected to the channel, this is signalled with ‘disconnected’.

Stepper-Motor Control

The position and speed of the stepper motor can be set via the control elements. The status window shows the current position, temperature and power supply.

I/O Control APP for Android™

Control the digital and analog I/Os of our Ethernet modules from on the road. With the DEDITEC I/O control Android App, any network-compatible Android device can be remotely controlled for DEDITEC products with Ethernet interface

Features:

Separate storage of network settings for private and public networks
Better clarity through configurable I/O names
Configurable refresh of all I/Os

The following I/Os are supported:

up to 128 analog inputs (0..10V, 0..5V, +/- 10V and +/- 5V)
up to 64 analog outputs (0..10V, 0..5V, +/- 10V and +/- 5V)
up to 128 digital inputs and outputs

Network settings
A configuration for private (WLAN) or public (Internet) networks can be created and saved in the network settings.

Module configuration

At the module configuration you see the number of connected I/O modules.

You can also select here which I/Os are to be controlled.

Digital inputs
The digital inputs are scanned at an adjustable interval.

Digital outputs
In the area of the digital outputs the channels can be switched on or off individually.

It is also possible to switch all channels on or off.

Analogue inputs
For the analog inputs you can select from the measuring ranges 0..10V, 0..5V, +/- 10V or +/- 5V.

The A/D channels are scanned automatically at an adjustable interval.

Analogue outputs
Here you may set analog outputs in the measuring range 0..10V, 0..5V, +/- 10V or +/- 5V.

Settings
This picture shows the settings for analog outputs. Each channel can be given a name here.

It can also be defined here whether and at what interval the analog outputs are read back.

These settings are available for all I/Os.

Connection example MOS/PWM

Connection example

Screwless connector system

The customer’s connection wiring of the inputs and outputs is carried out via screwless, pluggable terminal strips. The conductor connection is made by a so-called actuating tool.
A locking and ejection mechanism facilitates the insertion and removal of the complete terminal strip.

Handling

Step 1

Remove the operating tool from the scope of delivery.

Step 2

Insert the operating tool firmly into the side opening in the direction of conductor connection.

Step 3

Now insert the stripped conductor into the open terminal contact.

Schritt 4

Pull the operating tool out again.

Step 5

Check the correct connection of the conductor. It should now no longer be possible to pull it out easily.

Manual

Manual NET-Serie

Hard- und Software description

Download

Description NET-CPU Modules
Description NET-DEV Digital Modules

DELIB driver library

Manual of the DELIB driver library

Documentation of all functions for the driver library

Download

Windows 10, 8, Vista, 7, XP, 2000 andLinux
Moduel open/close functions
Digital inputs: reading 1 / 8 / 16 / 32 / 64 bit
Digital outputs: Write 1 / 8 / 16 / 32 / 64 bit
A/D Lesen: read, read_volt, read_mA, A/D Modus einstellen
D/A schreiben: write, write_volt, write_mA, D/A-Modus einstellen

DELIB (64-bit) driver library for Windows

For Windows 11/10, Windows 7, Windows 8, Vista, XP and 2000

Download

Installation file for the 64 bit DELIB driver library.

The following operating systems are supported:

64 bit

Windows 11/10 x64
Windows 7 x64
Windows 8 x64
Windows Server 2012 x64
Windows Server 2008 x64
Windows Vista x64
Windows XP x64
Windows Server 2003 x64

Included software

DT-Flasher x64
Software to update DEDITEC module to the latest version
DELIB Configuration Utility x64
Set configuration of module addresses
DELIB Module Config x64
Configuration of module-specific settings
CAN Configuration Utility x64
Set configuration of CAN modules
DELIB Module Demo x64
Enables manual switching of a module
DELIB Command Line Interface x64
Enables the execution of DELIB commands in the command line
Watchdog Configuration Utility x64
Set configuration of a watchdog stick

DELIB (32-bit) driver library for Windows

For Windows 11/10, Windows 7, Windows 8, Vista, XP and 2000

Download

Installation file for the 32-bit version of the DELIB driver library.

The following operating systems are compatible:
32-Bit

- Windows 11/10
- Windows 7
- Windows 8
- Windows Server 2012
- Windows Server 2008
- Windows Vista
- Windows XP
- Windows Server 2003

64-Bit

Windows 10 x64
Windows 7 x64
Windows 8 x64
Windows Server 2012 x64
Windows Server 2008 x64
Windows Vista x64
Windows XP x64
Windows Server 2003 x64

Included software

DT-Flasher
Software to update DEDITEC module to the latest version
DELIB Configuration Utility
Set configuration of module addresses
DELIB Module Config
Configuration of module-specific settings
CAN Configuration Utility
Set configuration of CAN modules
DELIB Module Demo
Enables manual switching of a module
DELIB Command Line Interface
Enables the execution of DELIB commands in the command line
Watchdog Configuration Utility
Set configuration of a watchdog stick

Attention:

With this version of the driver library, only 32-bit applications can be created, which can then be run on 32- and 64-bit systems.

DELIB driver library for Linux (32/64-bit)

For 32/64-bit Linux distributions starting with kernel 2.6.x

Download

DELIB driver library for Linux distributions (32/64-bit) starting with kernel 2.6.x

This driver package includes the following components:

DELIB USB driver
DELIB Ethernet driver
DELIB CLI

DELIB USB driver

Supports the following products:

NET-Series (via USB interface)
RO-USB-Series
BS-USB-Series
USB-Mini-Sticks
USB-Watchdog
USB-OPTION-8 / USB-RELAIS-8
USB-TTL-32 / USB-TTL-64

Note:

With the standard USB driver, you can access several USB products with different module IDs (for example one RO-USB and one USB-OPTOIN-8). Therefore, no additional driver installation is required.

If you want to access several USB products with the same module ID (for example one USB-OPTOIN-8 and one USB-RELAIS-8), you have to install additionally the Linux FTDI driver. The FTDI driver can be found at http://www.ftdichip.com.

DELIB Ethernet driver

Supports the following products:

NET-Series (via Ethernet Interface)
RO-ETH-Series
RO-ETH/LC-Series
BS-ETH-Serie
ETH-OPTION-8 / ETH-RELAIS-8
ETH-TTL-64

DELIB CLI

With the DELIB CLI (Command Line Interface) for Linux it is possible so controll all I/O’s over the command-line.

DELIB - Sample-Sources - Installer (approx. 10 MB)

Sample programs for different programming languages (Also in DELIB Setup included)

Download

Sample programs for different programming languages (Also in DELIB Setup included)

C (Microsoft Visual C++ 6.0, Borland C)
C++ (Microsoft Visual C++ 6.0)
C# (Microsoft Visual C# 2008 to 2015)
Delphi (Borland Delphi 7)
VB (Microsoft Visual Basic 6.0)
VB.NET (Microsoft Visual Basic 2008 to 2015)
Java (Java native interface)
Java.dll (Ethernet protocol for ethernet products)

Download

Hardware-Updates (Firmware)

Flash files for the DT-Flasher

Download

The flash files can also be downloaded directly in the DT-Flasher.

This package contains firmware files for the following products:

STARTER-series:

USB-MINI-Sticks
USB-8-er Opto/Relay
Ethernet 8-er Opto/Relay
USB-TTL I/O
Ethernet-TTL I/O

BS-series:

BS-CAN Module
BS-ETH Module
BS-USB Module
BS-SER Module

RO-series Interfaces:

RO-USB
RO-SER
RO-ETH
RO-ETH/LC
RO-CAN

RO-series I/Os:

AD / DA Module
CNT8 / CNT-IGR
O8-R8 Time module
PT100
Stepper2

Development accessories

USB Controller 8
USB Watchdog Stick

DIN rail connector

The DIN-Rail connector is a single BUS segment which allows the connection to other modules. It is clipped into the DIN-rail and plugged into the side of an existing DIN-Rail connector.

DIN-Rail Bus Connectors
Connection of a NET or COS module
For extension of the NET or COS bus system
1 piece

16 pol connector

Required to connect your application to the DEDITEC module

Type: Wago Kontakttechnik 713-1108/037-000
Pluggable female connector with locking mechanism
100 % malfunction protected
1-wire connection for all types of conductors up to 1.5mm²

8-times relay powermodule (switching capacity 40V/10A), which can be controlled by relays/opto-couplers

The MOD-REL8_10A has eight changeover relays with a switching capacity of 48V/10A AC or 30V/8A DC. It can be used as additional power stage for our digital output modules. The normally open contacts of a digital output module, e.g. a RO-USB-REL16, are simply connected in parallel to the inputs of this power stage. Additionally this module requires a power supply of 24V DC.

Power stage for all digital output modules
8 change-over contact relay (CO) / 48V / 10A AC or. 30V / 8A DC
24V power supply
Pluggable terminal strips for the connection wiring
Potential-free inputs (no control voltage required)

Power supply 24V/2A for DIN rail mounting

The DR-4524 from Mean Well is a 48W rail mount power supply for industrial applications. It offers protection against short circuit, overload, overvoltage and overheating.

Input voltage range: 85V… 264V AC / 120V DC … 370V DC
Output voltage: 24V DC
Output current: 2A
Nominal power: 48W

12V din rail relay

PLC interface for limiting continuous currents up to 10A, consisting of basic terminal with screw connection and pluggable miniature relay. Mountable on NS 35/7.5 mounting rail.

Nominal voltage: 230V AC / 220V DC
Switching voltage: 250 V AC/DC
1 changeover contact
Reverse polarity protection, freewheeling diode
LED for voltage indication
Phoenix Contact, 2967617, PLC-RSC- 12DC/21HC

24V din rail relay

PLC interface for limiting continuous currents up to 10A, consisting of basic terminal with screw connection and pluggable miniature relay. Mountable on NS 35/7.5 DIN rail.

Nominal voltage: 24V AC/DC
Switching voltage: 250 V AC/DC
1 changeover contact
Reverse polarity protection, freewheeling diode
LED for voltage indication
Phoenix Contact, 2967633, PLC-RSC- 24UC/21HC

DIN rail connector

The DIN-Rail connector is a single BUS segment which allows the connection to other modules. It is clipped into the DIN-rail and plugged into the side of an existing DIN-Rail connector.

DIN-Rail Bus Connectors
Connection of a NET or COS module
For extension of the NET or COS bus system
1 piece

16 pol connector

Required to connect your application to the DEDITEC module

Type: Wago Kontakttechnik 713-1108/037-000
Pluggable female connector with locking mechanism
100 % malfunction protected
1-wire connection for all types of conductors up to 1.5mm²

Strain relief plate for 16 or 18 pole Wago connectors

A strain relief plate that can be mounted centrally between the conductor entries facilitates the plugging and unplugging process and allows easy access to the actuation openings even when wired.

Type: Wago / 713-127
Suitable for 16/18 pole female connectors with conductor connection
Mating and unmating aid for Wago connectors
Strain relief of the individual wired conductors
Easy mounting

Tool for wiring connectors

Serves to open and close the clamp contacts on the Wago connectors.

Type: Wago Kontakttechnik 734-231

DIN Rail

Top-hat rail for mounting our control technology modules.

Top-hat rail according to DIN EN 50022
Type: Phoenix Contact / 1208131
Dimensions in mm: 450 x 35 x 7.5 (L x W x D)

Reviews

There are no reviews yet.

Be the first to review “NET-DEV module with 16 MOS/PWM outputs (2A)”

Use our advantages

Lifetime
updates

Free soft- & hardware(firmware)-updates.
Enjoy our lifetime update service.

5 years
Delivery availability

We offer at least 5 years delivery availability for our products.
Our experience shows that it is even about 10 years.

Questions about the product? Product support

Do you have any technical or commercial questions about the product before you buy?
Please contact us in advance.

Customer-
modifications

Our products often serve as the basis for customer-specific solutions.
Just get in touch with us.

We are
always there for you!

Since its foundation in 2008, Dipl. Ing. Jürgen Siebert has been the managing director of DEDITEC GmbH. He will also be happy to advise you personally.

Product- & Service-Hotline: +49 (0) 22 32 / 50 40 8 – 40

Questions about the product or order: support@deditec.de
